Product Details:
Payment & Shipping Terms:
|
Characteristic: | Flexible, Flame Retardant, Eco-friendly, Quick Shrink, Bright Color Stand, Stable Performance | Working Temperature: | -45ºC ~ 125ºC |
---|---|---|---|
Shrink Ratio: | 2:1 | Shrink Temperature: | 70ºC ~ 125ºC |

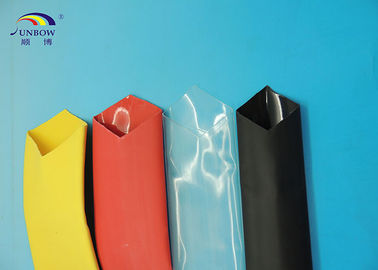

Size: | Inner Diameter 1.6-50mm | Color: | Black,blue,red,green...... |
High Light: | heat shrink tube,adhesive lined heat shrink tubing |

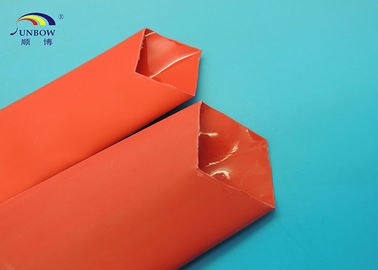

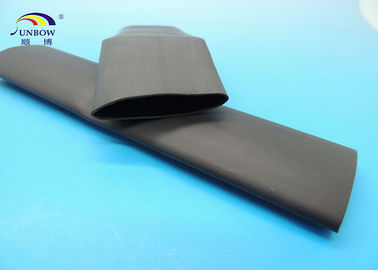

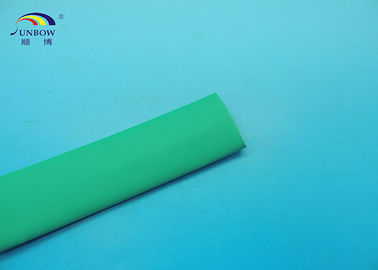

UL / RoHS / REACH certificate soft adhesive-lined heat shrinable tube flame-retardant for electric wires insulation
Advantage
1. Great production ability as high as 9,000,000 meters/month
2. Competitive price with quality products
3. Whole color UL certificated with inner diameter 1.6-50mm
Characteristics
1. Shrink ratio: 2:1
2. Shrink temperature: 70ºC ~ 125ºC
3. Flexible, flame retardant, eco-friendly, quick shrink, bright color stand, stable performance
Dimension
Soft Adhesive-lined Heat Shrinkable Tube (2.1)
Inner Diameter |
As Supplied |
After Recovery (mm) |
Package (m/spool) |
|||
(inch) |
(mm) |
Max ID |
Total Wall Thickness |
Glue Thickness |
||
1/16 |
Φ1.6 |
1.6 |
0.8 |
0.60±0.3 |
0.3±0.2 |
200 |
3/32 |
Φ2.4 |
2.4 |
1.2 |
0.70±0.3 |
0.35±0.2 |
200 |
1/8 |
Φ3.2 |
3.2 |
1.6 |
0.70±0.3 |
0.35±0.2 |
200 |
3/16 |
Φ4.8 |
4.8 |
2.4 |
0.80±0.3 |
0.4±0.2 |
100 |
1/4 |
Φ6.4 |
6.4 |
3.2 |
0.80±0.3 |
0.4±0.2 |
100 |
5/16 |
Φ7.9 |
7.9 |
3.9 |
0.90±0.3 |
0.45±0.2 |
100 |
3/8 |
Φ9.5 |
9.5 |
4.8 |
0.90±0.3 |
0.45±0.2 |
50 |
1/2 |
Φ12.7 |
12.7 |
6.4 |
0.95±0.4 |
0.45±0.2 |
1.22 |
5/8 |
Φ15.9 |
15.9 |
7.9 |
0.95±0.4 |
0.45±0.2 |
1.22 |
3/4 |
Φ19.1 |
19.1 |
9.5 |
1.0±0.4 |
0.45±0.2 |
1.22 |
1 |
Φ25.4 |
25.4 |
12.7 |
1.1±0.4 |
0.50±0.2 |
1.22 |
1 1/4 |
Φ31.8 |
31.8 |
15 |
1.15±0.4 |
0.50±0.2 |
1.22 |
1 1/2 |
Φ38.1 |
38.1 |
19 |
1.25±0.4 |
0.50±0.2 |
1.22 |
1 3/4 |
Φ44.5 |
44.5 |
22 |
1.35±0.4 |
0.55±0.2 |
1.22 |
2 |
Φ50.8 |
50.8 |
25.4 |
1.5±0.4 |
0.60±0.2 |
1.22 |
|
Inner Diameter |
As Supplied |
After Recovery (mm) |
Package (m/spool) |
|||
(inch) |
(mm) |
Max ID |
Total Wall Thickness |
Glue Thickness |
||
1/16 |
Φ1.6 |
1.6 |
0.8 |
0.40±0.15 |
0.20±0.1 |
200 |
3/32 |
Φ2.4 |
2.4 |
1.2 |
0.45±0.15 |
0.25±0.1 |
200 |
1/8 |
Φ3.2 |
3.2 |
1.6 |
0.45±0.15 |
0.25±0.1 |
200 |
3/16 |
Φ4.8 |
4.8 |
2.4 |
0.50±0.15 |
0.25±0.1 |
100 |
1/4 |
Φ6.4 |
6.4 |
3.2 |
0.55±0.15 |
0.25±0.1 |
100 |
5/16 |
Φ7.9 |
7.9 |
3.9 |
0.60±0.15 |
0.30±0.1 |
100 |
3/8 |
Φ9.5 |
9.5 |
4.8 |
0.70±0.15 |
0.30±0.1 |
50 |
1/2 |
Φ12.7 |
12.7 |
6.4 |
0.75±0.20 |
0.35±0.1 |
1.22 |
5/8 |
Φ15.9 |
15.9 |
7.9 |
0.80±0.20 |
0.35±0.1 |
1.22 |
3/4 |
Φ19.1 |
19.1 |
9.5 |
0.85±0.20 |
0.40±0.1 |
1.22 |
1 |
Φ25.4 |
25.4 |
12.7 |
0.90±0.20 |
0.40±0.1 |
1.22 |
Color:Standard color is black,other color available upon request
Company information
Our main products include various fiberglass sleeving, silicone tube (especially the platinum cured silicone tube), PTFE tube, PVC tube, Heat shrinkable tube and so on.
All our products have obtained theUL and CSA certificates (Cert No: E333178 --UZIQ2, VW-1 & E333177--UZFT2/8,200C, 600V).Also all our products are in conformance with the European RoHS requirements. Furthermore, based on European new requirements, we re-apply and obtained German PFOA and PFOS certificates and European REACH reportshowing that our products do not contain 73 high-risk substances. In Sep.2009, we successfully passed ISO9001:2008international quality management system certification, nowISO14001system is also pushing.
