Multi Color Polyolefin Heat Shrink Tubing 0.8mm - 180mm ID Flexible and Eco-friendly

Multi Color Polyolefin Heat Shrink Tubing 0.8mm - 180mm ID Flexible and Eco-friendly
Multi Color Polyolefin Heat Shrink Tubing 0.8mm - 180mm ID Flexible and Eco-friendly Multi Color Polyolefin Heat Shrink Tubing 0.8mm - 180mm ID Flexible and Eco-friendly Multi Color Polyolefin Heat Shrink Tubing 0.8mm - 180mm ID Flexible and Eco-friendly Multi Color Polyolefin Heat Shrink Tubing 0.8mm - 180mm ID Flexible and Eco-friendly

Large Image :  Multi Color Polyolefin Heat Shrink Tubing 0.8mm - 180mm ID Flexible and Eco-friendly

Product Details:
Place of Origin: CHINA
Brand Name: Sunbow
Certification: UL no E360625,RoHS/REACH
Model Number: SB-RSFR-YG SERIES
Payment & Shipping Terms:
Minimum Order Quantity: 500M
Price: USD0.09-16.4 per meter
Packaging Details: packing by rolls,50-200m/roll
Payment Terms: Western Union, T/T,paypal
Supply Ability: 9,000,000 meters per month
Detailed Product Description
Characteristic: Flexible, Flame Retardant, Eco-friendly, Quick Shrink, Bright Color Stand, Stable Performance Working Temperature: -55ºC ~ 125ºC
Shrink Ratio: 2:1&3:1 Shrink Temperature: 70ºC ~ 120ºC
Color: Black,white,red,blue,green... Size: Inner Diameter 0.8-180mm
High Light:

adhesive lined heat shrink tubing

,

heat shrinkable sleeves

Advantage:

1. Great production ability as high as 9,000,000 meters/month

2. Competitive price with quality products

3. Whole color UL certificated with inner diameter 0.8-180mm



Structure:

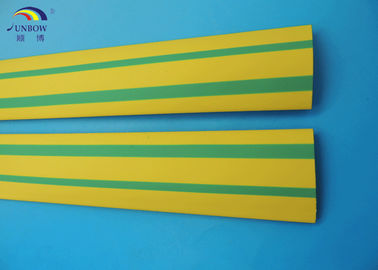

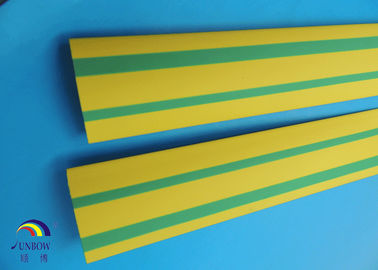

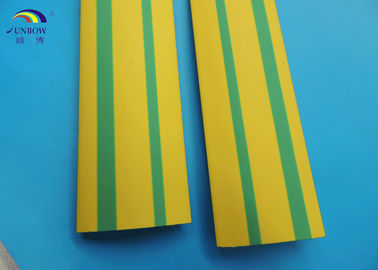

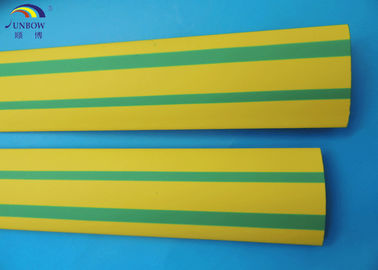

Yellow & green heat shrinkable tube is made from excellent yellow and green polyolefin material with special method.



Usage:

It has soft, flame retardant, environmental, bright color stand and stable performance. And it is mainly used in wire and cable conduit marks, electron, electricity, telecommunications, shipping, aerospace etc.



Characteristics:

       1.      Shrink ratio: 2:1 & 3:1

2.      Shrink temperature: 70ºC ~ 120ºC

3.      Soft, flame retardant, environmental friendly, bright color stand and stable performance



Specification:

Property

Test Method

Standard

Tensile Strength (MPA)

ASTM D2671

≥10.4

Elongation (%)

ASTM D2671

≥ 200

Dielectric Strength (KV/mm)

IEC243

≥15

Volume Resistivity (Ω cm)

IEC 93

≥1x1014

Tensile Strength After Aging

UL224  158ºC*168hrs

≥ 7.3

Elongation After Aging (%)

UL224  158ºC*168hrs

≥100

Heat Shock

UL224  250ºC*4hrs

No Cracking

Flame Resistance

UL224

VW-1







1)    2:1 yellow & green heat shrinkable tube

Size

As Supplied (mm)

After Recovery (mm)

Standard Package

(m/spool)

Application Range (mm)

Inner Diameter

Wall Thickness

Inner Diameter

Wall Thickness

Φ0.8

1.0±0.2

0.15±0.05

≤0.50

0.22±0.10

200

0.6~0.8

Φ1.0

1.5±0.3

0.15±0.05

≤0.65

0.28±0.10

200

0.75~0.9

Φ1.5

2.0±0.3

0.18±0.05

≤0.85

0.32±0.10

200

0.95~1.4

Φ2.0

2.5±0.3

0.18±0.05

≤1.00

0.35±0.10

200

1.1~1.8

Φ2.5

3.0±0.3

0.18±0.05

≤1.25

0.38±0.10

200

1.35~.3

Φ3.0

3.5±0.4

0.18±0.05

≤1.50

0.40±0.10

200

1.6~2.7

Φ3.5

4.0±0.4

0.22±0.05

≤1.80

0.42±0.10

200

1.85~3.2

Φ4.0

4.5±0.4

0.25±0.05

≤2.00

0.45±0.10

200

2.1~3.6

Φ4.5

5.0±0.4

0.25±0.05

≤2.30

0.50±0.10

100

2.35~4.0

Φ5.0

5.5±0.4

0.25±0.05

≤2.5

0.55±0.10

100

2.6~4.5

Φ6.0

6.5±0.4

0.28±0.05

≤3.0

0.55±0.10

100

3.1~5.4

Φ7.0

7.5±0.4

0.28±0.05

≤3.5

0.55±0.10

100

3.7~6.3

Φ8.0

8.5±0.5

0.28±0.05

≤4.0

0.60±0.10

100

4.2~7.2

Φ9.0

9.5±0.5

0.30±0.08

≤4.5

0.60±0.10

100

4.7~8

Φ10

10.5±0.5

0.30±0.08

≤5.0

0.60±0.10

100

5.2~9

Φ11

11.5±0.5

0.30±0.08

≤5.5

0.60±0.10

100

5.7~10

Φ12

12.5±0.5

0.30±0.08

≤6.0

0.60±0.10

100

6.2~11

Φ13

13.5±0.5

0.35±0.10

≤6.5

0.65±0.10

100

6.7~12

Φ14

14.5±0.5

0.35±0.10

≤7.0

0.65±0.10

100

7.3~13

Φ15

15.5±0.6

0.40±0.12

≤7.5

0.70±0.10

100

7.8~14

Φ16

16.5±0.6

0.40±0.12

≤8.0

0.70±0.10

100

8.3~15

Φ17

17.5±0.6

0.40±0.12

≤8.5

0.70±0.10

100

8.8~16

Φ18

19.0±0.7

0.40±0.15

≤9.0

0.80±0.15

100

9.3~17

Φ20

22.0±0.7

0.40±0.15

≤10.0

0.80±0.15

100

10.4~19

Φ22

24.0±0.7

0.40±0.15

≤11.0

0.80±0.15

100

11.4~21

Φ25

26.0±0.7

0.55±0.15

≤12.5

0.90±0.15

50

12.8~24

Φ28

29.0±0.7

0.55±0.15

≤14.0

0.90±0.15

50

14.4~29

Φ30

31.5±0.7

0.55±0.15

≤15.0

0.95±0.15

50

16~29

Φ35

36.5±0.7

0.55±0.15

≤17.5

1.00±0.15

50

18~34

Φ40

41.5±0.7

0.55±0.15

≤20.0

1.00±0.15

50

21~39

Φ45

46.0±0.7

0.55±0.15

≤22.5

1.00±0.15

25

23~44

Φ50

51.0±0.7

0.55±0.15

≤25.0

1.00±0.15

25

26~49

Φ60

≥60

0.60±0.15

≤30

1.55±0.20

25

35~55

Φ70

≥70

0.65±0.15

≤35

1.60±0.20

25

40~65

Φ80

≥80

0.70±0.15

≤40

1.70±0.20

25

45~75

Φ90

≥90

0.75±0.15

≤45

1.90±0.20

25

50~88

Φ100

≥100

0.80±0.20

≤50

2.10±0.20

25

55~95

Φ120.0

≥120

0.85±0.20

≤60

2.20±0.20

15

65~115

Φ150.0

≥150

0.90±0.20

≤75

2.20±0.20

15

80~145

Φ180.0

≥180

0.95±0.20

≤90

2.30±0.20

15

95~175

2)    3:1 yellow & green heat shrinkable tube

Inner Diameter

As Supplied (mm)

After Recovery (mm)

Standard Package

(inch)

(mm)

Inner Diameter

Wall Thickness

(m/spool)

1/8

Φ3.2

≥3.2

≤1.0

0.55±0.15

200

3/16

Φ4.8

≥4.8

≤1.5

0.60±0.15

100

1/4

Φ6.4

≥6.4

≤2.0

0.65±0.15

100

3/8

Φ9.5

≥9.5

≤3.0

0.75±0.15

50

1/2

Φ12.7

≥12.7

≤4.0

0.75±0.20

50

3/4

Φ19.1

≥19.1

≤6.0

0.85±0.20

50

1

Φ25.4

≥25.4

≤8.0

1.00±0.20

50

1-1/2

Φ39.0

≥39.0

≤13.0

1.50±0.20

50



Color:Standard color is black,other color available upon request
