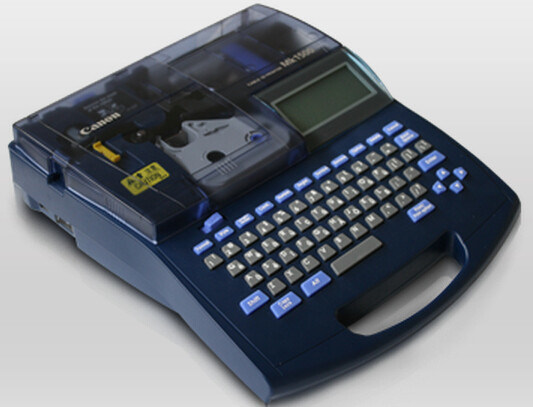

Easy Operation Automatic Cutting Fast Speed 300dpi Tube Marker Printer

Detailed Product Description



Easy Operation Automatic Cutting Fast Speed 300dpi Tube Marker Printer





Specifications for Cable ID  Printer :



1) Automatic cutting / full-cut

2) High speed and fast output rate 25mm/sec.

3) Various print patterns

4) Print speed: 25mm per secondWith a print speed of 25mm per second, the MK1500 ensures fast and high-quality output, hence fulfilling all your requirements. When printing a 20mm tube with 5 full-size characters and in consecutive print mode and with fast cutting, the MK1500 is able to deliver an impressive 35 pieces every minute.



Printing Method

Thermal transfer

Resolution

300dpi

Printing Speed

Tubes:

High: 25mm/sec.
Standard: 18.5mm/sec.
Low: 12.5mm/sec.

Labels:

High: 25mm/secs.
Standard / Low: 12.5mm/sec.

Output Rate

High Mode:

35pcs./min.

Standard Mode:

30pcs./min.

Low Mode:

21pcs./min.

(Printing 20mm tubes, 5 full-size characters,

consecutive print mode, half-cutting)

Ink Ribbons

Exclusive cassette

Black:

100m

White:

85m

Character Sizes

2mm, 3mm, 6mm (full-width, half-width available for each)

Input Modes

Alphanumeric, symbol input

Display

LCD Graphic (160 x 64 dots)

Display Capacity

10 characters/line x 2 lines (full-width) or
20 characters/line x 2 lines (half-width)

Built-in Memory

Print-data:

Approx. 2,500 characters

Files:

Approx. 7,500 characters

Service life of internal backup

battery for data storage:

About 5 years

Media Cutting Method

Automatic full-cutting, Automatic half-cutting

Power Supply

Exclusive AC Adapter (Input voltage: AC 100V - 240V 50 / 60 Hz)

Operating Environment

15°C - 32.5°C (59°F - 90.5°F),
10% - 85% RH
Range is lowered to 5°C (41°F) with Tube Warmer option installed

Storage Environment

5°C - 32.5°C (41°F - 90.5°F),
10% - 90% RH

Dimensions (W x D x H)

250 x 300 x 85mm (9.8 x 11.8 x 3.4in.)

Weight

2kg (4.4lb.) (printer only)



Printing up to trailing edge of tube :

The MK series printers can print characters up to the edge of each tube to avoid tube waste. This contributes to long-term cost reduction



Automatic cutting / full-cut is also possible

Each segment is partially cut automatically as it prints. The segments are easily

separated manually after they come out of the printer. The cutting operation for

each job can be set for full-cut, half-cut, no cut with marking, or no cut without marking.

Easy Operation Automatic Cutting Fast Speed 300dpi Tube Marker Printer

Consecutive / serial printing

MK series printers can be set to print the same text on every segment (consecutive printing). Just enter the data and the number of segments required, then start
the print. Or, MK series printer can be set to print numbers that increment
automatically as the segments print (serial printing). No need to do separate
entries and printing for each segment!





Applications :



widely used in electric installation, communication, aerospace,Machines & Equipments

manufacturer, Oil and gas sector, metallurgy, petrochemical, transportation,

commercial, warehouse.



Easy Operation Automatic Cutting Fast Speed 300dpi Tube Marker PrinterEasy Operation Automatic Cutting Fast Speed 300dpi Tube Marker Printer
