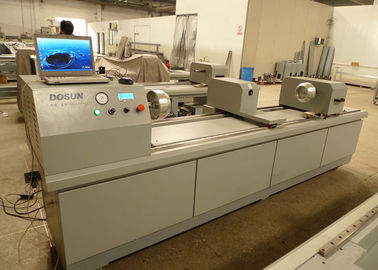

1.5KW/220V 50Hz Rotary Laser Engraver Equipment Blue Rotary UV Laser Engraving Machinery
Description:
DOSUN blue-fina™ Laser Engine:Integrating several high technologies ,such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on ,in to one, it provides revolutionary power for finer screen engraving.
DOSUN engravine ™ Software :After tens of edition upgrade in past decades, as a profound and professional synthesizer of engraving technology DOSUN engravine™ Software not only belongs to DOSUN but also to the whole textile printing industry.
DOSUN perfekt™ Hardware Platform:Decades of engraver-manufacturing experience, hundreds of successful user′s case, thousands of vivid technical specific, loads more than perfectness.
Screen Engraving flow:
Coating—low-temperature oven—laseren graving—developing—testing—
high-temperature oven—end ring—end product
Specifications:
|
Model |
BR2200 BR3500 |
|
Screen Breadth |
2200mm 3500mm |
|
Screen Repeat |
640mm(Standard) |
|
Resolution |
360/720dpi (300/600dpi；25/508dpi) |
|
Repeated Accuracy |
±0.02mm |
|
Imaging Light Source |
405nm LD |
|
Engraving Speed |
6～8min./m(640mm) |
|
Acceptable File Format |
BMP/TIFF |
|
Ambient |
Temperature:5～40℃ |
|
Power |
1.5KW/220V, 50Hz |
|
Machine Dimension |
3650mm×750mm×1220mm(BR2200) |
|
Weight |
900kg(BR2200) 1200kg(BR3500) |
Competitive Advantage:
Noiseless operations
Low power consumption
Easy installation
High reliabilit
