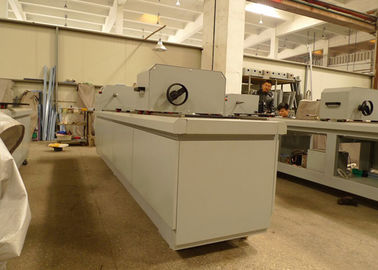

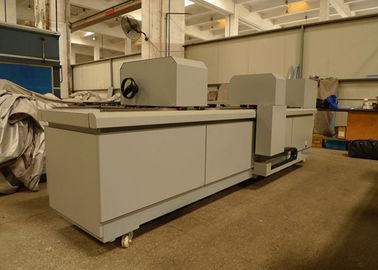

High Accuracy Blue UV Laser Rotary Engraver 820mm / 914mm / 1018mm Screen Repeat

Name: High Accuracy Blue UV Laser Rotary Engraver 820mm / 914mm / 1018mm Screen Repeat
Brand: DOSUN
SKU: 2200; 3000; 3500
Price: 1 USD
Availability: InStock
Rating: 4.6 (139 reviews)

Large Image : High Accuracy Blue UV Laser Rotary Engraver 820mm / 914mm / 1018mm Screen Repeat

Product Details:

Place of Origin:	China
Brand Name:	DOSUN
Certification:	ISO9000
Model Number:	2200; 3000; 3500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	10 sets

Contact Now

Detailed Product Description

High Light:

rotary engraving machine

rotary screen machine

High Accuracy Blue UV Laser Rotary Engraver 820mm / 914mm / 1018mm Screen Repeat

Description:
DOSUN blue-fina™ Laser Engine:Integrating several high technologies ,such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on ,in to one, it provides revolutionary power for finer screen engraving.
DOSUN engravine ™ Software :After tens of edition upgrade in past decades, as a profound and professional synthesizer of engraving technology DOSUN engravine™ Software not only belongs to DOSUN but also to the whole textile printing industry.
DOSUN perfekt™ Hardware Platform:Decades of engraver-manufacturing experience, hundreds of successful user′s case, thousands of vivid technical specific, loads more than perfectness.

Screen Engraving flow:
Coating—low-temperature oven—laseren graving—developing—testing—
high-temperature oven—end ring—end product

Specifications:

Model	BR2200 BR3500
Screen Breadth	2200mm 3500mm
Screen Repeat	640mm(Standard) 820mm/914mm/1018mm(Optional)
Resolution	360/720dpi (300/600dpi；25/508dpi)
Repeated Accuracy	±0.02mm
Imaging Light Source	405nm LD
Engraving Speed	6～8min./m(640mm)
Acceptable File Format	BMP/TIFF
Ambient	Temperature:5～40℃ Humidity:30～80%(Non-condensing) Lighting:Yellow light
Power	1.5KW/220V, 50Hz
Machine Dimension	3650mm×750mm×1220mm(BR2200) 4850mm×750mm×1220mm(BR3500)
Weight	900kg(BR2200) 1200kg(BR3500)

Competitive Advantage:
Noiseless operations
Low power consumption
Easy installation
High reliabilit
