Blue Tooth Interface 32 Bit Processor 1300mm Vinyl Graphics Cutter With Force Motor

Blue Tooth Interface 32 Bit Processor 1300mm Vinyl Graphics Cutter With Force Motor
Blue Tooth Interface 32 Bit Processor 1300mm Vinyl Graphics Cutter With Force Motor

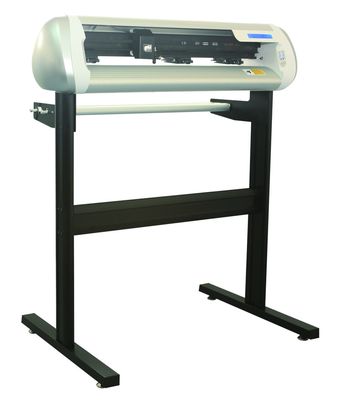

Large Image :  Blue Tooth Interface 32 Bit Processor 1300mm Vinyl Graphics Cutter With Force Motor

Product Details:
Place of Origin: China
Brand Name: CrA
Certification: ISO
Model Number: CB1300
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 5000 set / month
Detailed Product Description
High Light:

vinyl cutter and plotter

,

fabric cutting plotter



Blue Tooth Interface 32 Bit Processor 1300mm Vinyl Graphics Cutter With Force Motor



Specifications



Model

CB730

CB1300

Media Way

M bracket or Stand

Floor Stand

Mainboard

Cortex-M3 CPU ,   High-speed 32 bit processor

Control Panel

High light patterned LCD , friendly operating keypad

Driver

double high torsional force motor,  micro-step driver

Position

Limit edge system, any origin setting

Max paper feed width

730mm

1300mm

Max cutting width

700mm

1270mm

Max cutting speed

600mm/s

Max cutting length

20000mm

Max cutting thickness

1.0mm

Cutting force

0-600g(digital adjustment)

Mechanical precision

0.05mm

Repeatable precision

≤0.1mm/twice(On 1000*1000mm square)

Type of balde

Carbide blade

Type of Plot pen

All types diameter 11. 4mm plot pen

Protocol

Compatible DM/PL, HP/GL

Interface

Blue tooth/USB Port/Serial Port/D Card

Power Supply

INPUT AC110V±10% 1.0A 60Hz, AC220V±10% 0.5A 50Hz

Power Consumption

<100W

<120W

Operating environment

Temperature:+ 5±35,  Relative Humidity: 30% ~70%

External size

1045*300*330mm

1595*300*415mm

Weight

16Kg

29Kg



Competitive Advantage:



1. Bluetooth communication: Can be connected to computer within 10m distance , so one computer

can control several cutters,  and the cutters will not interference with each other. It’s very convenient

for computer,  mobile,   laptop,  notetbook with Bluetooth to control the cutter. Besides,  it will

overcome the interference of computer or  electrostatic.

2. External design memory(short name D card): 2-32M memory,  downloading wire to connect D card with

    computer,  and one computer can be configured several D cards.

3. Blue backlight big LCD: 4.2’’ blue backlight white character LCD,  128 segment digital display,  more bright, more intuitive.

4. Inside carriage increases the working area: CB730 with cutting width 700mm,  CB1300 with cutting width

1270mm.

5. High-precision roller stick: To ensure that no more than 1mm deviation every meters paper walked.

6. High quality buttons: Good hand feeling , durable,  blue backlight

7. laser system: Accurate laser system,  can do contour cutting.

8. Fashion white color and Metallic silver appearance.

9. Main board and Driver board are both in the right cover: It is convenient to repair and replace,  enhance

    anti-jamming performance.

10. Low noise design: Strengthen motor’s damping force,  reduce the operating noise,  increasing fan’s control.  Fan stops operating in stand by mode,  Prolong fan’s life.



Applications:



Enterprises and institutions sign: hospital,  school,  enterprises. Institution

Industrial Application: auto window film,  protect stick film,  film,  tinfoil

Advertisement signs: adhesive sticker,  vinyl,  wall paper,  paper cut

Traffic sign: Diamond reflective

Heat press graphic : contour cutting
