| Part NO.: | FOCC - PS003 | Splice Operating Temperature: | - 40°C To + 70°C |
|---|---|---|---|
| Inner: | Hot-melt Adhesive Ethylene Vinyl Acetate (EVA) | Outer: | Irradiation Cross-linked Polyolefin Heat Shrinkable Tube |
| Reinforcing Pin: | Deburred And Polished Stainless Steel | Color: | White, Black And Others |

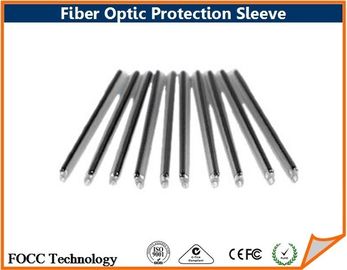

Waterproof Fusion Fiber Optic Splice Sleeves / Heat Shrink Cable Sleeves
All those Fiber Optic Splice Sleeves in FOCC,material made of Heat shrinkable ethylene-vinyl acetate (EVA) meltable adhesive tube creates a waterproof and dustproof seal to reduce erosion or weakening of a fiber splice, Strength member is made of stainless steel to make the fiber joint stronger and provide extra protection after the fiber optic fusion. RoHS logo Open ended assembly minimizes the possibility of air being trapped inside the tube during shrinkage.
Part NO. | FOCC - PS003 |
Name | Fiber Optic Protection Sleeve |
Type Application | Single fiber or Ribbon fiber |
Material | PE heat shrink tube, fusion tube, 304 steel rod |
Length | 60 mm or Customized Request |
Tubing Outer Diameter | 3.0, 2.6, 2.4, 2.2, 1.3mm or Customized Request |
Steel Rod Diameter | 1.5, 1.2,1.0, 0.8, 0.5mm or Customized Request |
Working Temperature | -45 ℃ to + 70 ℃ |
Shrinking Temperature Range | 120 ℃ |
Density | 0.94G/Cm3 |
Elongation at Break | 700% |
Tensile Strength | 18m PA |
Standard Color | Clear |
Other Color Available | White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple |
Notes: | |
Technical Parameter
Properties | Test Method | Typical Data |
Tensile Strength (Mpa) | ASTM D 2671 | ≧18Mpa |
Ultimate Elongation (%) | ASTM D 2671 | 700% |
Density | ISO R1183D | 0.94g/cm² |
Dielectric Strength(KV/mm) | IEC243 | 20KV/mm |
Dielectric Constant | IEC243 | 2.5 Max |
Longitudinal Change (%) | ASTM D 2671 | ±5% |
Fiber Optic Protection Sleeve Features
Standard Sleeves meet Bellcore GR‐1380;
Heat bonded assembly;
Outer tube meets MIL‐I‐23053/5 Class 2;
Choice of lengths;
Choice of diameter.
Fiber Optic Protection Sleeve Applications
Consist of a rod of stainless steel, hot fusion tubing and cross-linked polyolefin;
To rebuild the coating of fiber, providing mechanical strength at the fusion joint area and keeping optical transmission properties.
Shipping Tools
Quality Control and Gurantee
Notes:
Prices and specifications are subject to change without notice, FOCC is not responsible for typographical or photographic errors, For more details please contact us focc@fiberfocc.com directly, your choices are under our best service.
