Heat Shrinkable Seal 1 Oval + 8 Round Fiber Optic Splice Closure / Cable Enclosures

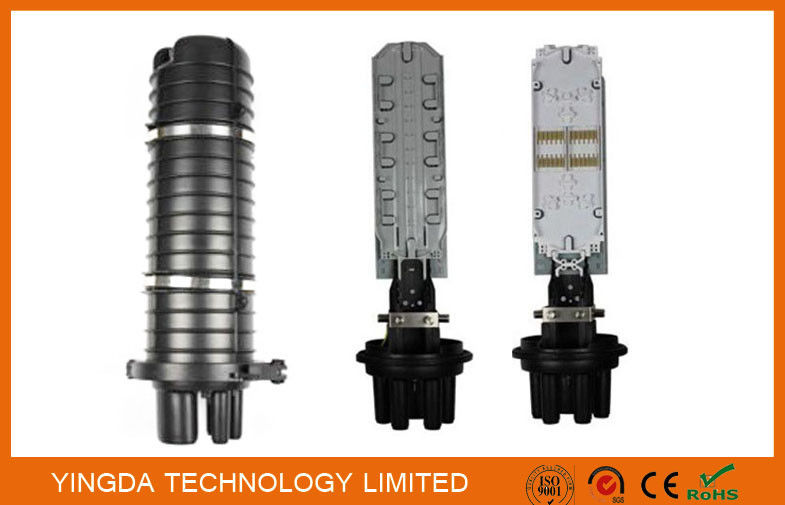

Large Image : Heat Shrinkable Seal 1 Oval + 8 Round Fiber Optic Splice Closure / Cable Enclosures

Product Details:

Place of Origin:	china
Brand Name:	YINGDA
Certification:	ISO,SGS
Model Number:	FOSC400B8 GJS-03H

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	1pc / box, 6 pcs/ carton box
Delivery Time:	15 days after pay
Payment Terms:	T/T or western Union
Supply Ability:	50,000pcs per month

Contact Now

Detailed Product Description

Shape:	Dome Vertical Closure	Max Capacity:	96 Fibers
Cable Port:	1 Oval + 8 Round Port	Cable Diameter:	Φ10mm～Φ25 Mm
Material:	PP Body + ABS Tray	Splice Tray Qty:	Max. 4 Pcs
Closure Dimension:	522*185mm	Weight:	3.5 Kgs
Carton Qty:	6 Pcs	Carton Size:	6049.561mm
Sealing Method:	Heat Srhinkable Tube	Waterproof Class:	IP68 Splice Closure
High Light:	fiber optic splice enclosure , fiber optic joint closure

96 Cores Dome IP68 1 Oval + 8 Round Fiber Optic Splice Cable Closure Heat Shrinkable Seal Pole Wall Aerial Mount

FOSC400B8 Fiber Optic Splice Closure (FOSC) is a member of dome closure series, the product adopts heat-shrinkable seals only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 12mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection; IP safety rate is IP68; he sealing method adopts screw pressure; This model is suitable for different methods of branch connection, including branching of uncut cable. It could be used for aerial, pole-mounting, wall-mounting and underground application. The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.

Heat Shrinkable Seal 1 Oval + 8 Round Fiber Optic Splice Closure / Cable Enclosures 0

Features:

May be used for cut, uncut and taut sheath applications.
May be used for all fiber optic cable.
Sheath retention & central strength member termination system included.
Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack
Installation and reentry with a minimum of tools
All hardware are captivated

Specifications

MODEL

Max capacity

(single fusion)

Splice tray

Dimension

(Hx D)

Cable ports

Max cable diameter

FOSC400B8 (GJS-03H)

96 cores

4pcs 24cores

540x180mm

1 oval port +

8 round ports

1 oval ports for 1 loop uncut) cable with max ￠25mm;

8 round ports, each port for 1 cable with max ￠10mm

Application

Underground, Aerial, Vault, Pole Mounting and Wall Mounting

Heat Shrinkable Seal 1 Oval + 8 Round Fiber Optic Splice Closure / Cable Enclosures 1

Standard accessories

Dome, Base, clamp, O-ring,metal storage basket, Splice Tray,Heat shrink protective sleeve,buffer tube,Cable ties,Grounding wire, Labeling paper, Installation Manual, etc

Heat Shrinkable Seal 1 Oval + 8 Round Fiber Optic Splice Closure / Cable Enclosures 2

1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper

(2.5 x30mm)+ branching clip etc

8 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)etc

Optional accessories

Hanging hook,Wall mounting(Duct mounting) kits,Pole Mounting kit,Grounding device,Air valve

Heat Shrinkable Seal 1 Oval + 8 Round Fiber Optic Splice Closure / Cable Enclosures 3

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Heat Shrinkable Seal 1 Oval + 8 Round Fiber Optic Splice Closure / Cable Enclosures 4

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

Heat Shrinkable Seal 1 Oval + 8 Round Fiber Optic Splice Closure / Cable Enclosures 5

Order information:

FOSC400B8-XX-XX-X

FOSC400B8-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
