8 Port Power Over Ethernet 10 / 100 / 1000M with IEEE 802.3af

8 Port Power Over Ethernet 10 / 100 / 1000M with IEEE 802.3af
8 Port Power Over Ethernet 10 / 100 / 1000M with IEEE 802.3af

Large Image :  8 Port Power Over Ethernet 10 / 100 / 1000M with IEEE 802.3af

Product Details:
Place of Origin: ShenZhen China
Brand Name: Fiberroad
Certification: CE ISO9000 SGS FCC
Model Number: FR-POE3508G-XX
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Pls send request details
Packaging Details: Standard neutral or brand packing
Delivery Time: 2-3 workdays
Payment Terms: Western Union, T/T
Supply Ability: 5000pcs/Month
Detailed Product Description
Transmission Method: Store – And – Forward MAC Address Learning: Automatic Update
Filtering Address Table: 2K Entries Per Device Humidity: Relative Humidity: 5% - 95%
Dimensions: 210 Mm W X 171 Mm D X 43.2 Mm H Number Of Ports: 8 X 10/100/1000Mbps Auto-MDIX RJ-45 Ports With 8 PoE Enabled Ports
High Light:

poe power over ethernet


power over ethernet switch

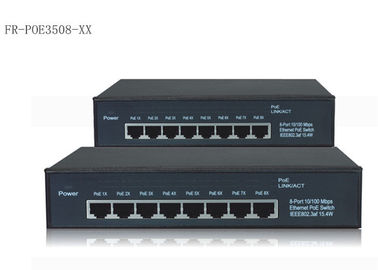

8 Ports Power Over Ethernet Switch 10 / 100 / 1000M with IEEE 802.3af



The 8-Port Gigabit PoE switch is an unmanaged 10/100/1000Mbps Gigabit Ethernet PoE switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 8 10/100/1000Mbps ports and 8 IEEE802.3af Power over Ethernet (PoE) ports for orkstation, It is an ideal solution for small office and home users to utilize a combination of Gigabit PoE and non-PoE devices.The switch automatically detects IEEE 802.3af compliant devices and provides power and data over a single cable.
The 8-Port Gigabit PoE switch is a Power Source Equipment (PSE) and fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af PoE standard. The 8 - Port Gigabit PoE Switch enables users to attach IEEE802.3af compliant devices such as wireless Access Points (APS), VOIP phone, IP camera, printer and Network Attached Storage (NAS) directly to the 8 -port 10/100/1000M Ethernet PoE Switch without requiring additional power on the network. The unit is designed with home and small business users in mind and is ideal for installations where AC power is not available or no cost-effective.



Key Features

  •  8 x 10/100/1000Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 8 ports PoE function ( port 1 ~ port 8)
  •  Compliant with IEEE 802.3af.
  •  Supports PoE power up to 107.8W for all PoE ports.
  •  Supports PoE IEEE802.3af compliant Powered Device (PD)
  •  Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.
  •  Full/half duplex transfer mode for each port.
  •  Wire speed reception and transmission.
  •  Up to 2K unicast address entities per device. Self-learning, and table aging.
  •  9216-byte jumbo packet length.





IEEE 802.3 10BASE-T Ethernet


IEEE 802.3u 100BASE-TX Fast Ethernet


IEEE 802.3x Full Duplex Flow Control


IEEE 802.3af Power over Ethernet


IEEE 802.3ab 1000Base-T Gigabit Ethernet (twisted-pair copper)



Data Transfer Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)


Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)


Gigabit Ethernet: 2000Mbps (full duplex)

Network Cables

10Base-T: 2-pair UTP Cat 3, 4, 5 up to 100 meters.


100Base-T : 2-pair UTP Cat 5, 5e up to 100 meters.


1000Base-T: 4-pair UTP Cat5e 6, up to 100meters.

Number of Ports

8 x 10/100/1000Mbps auto-MDIX RJ-45 ports with 8 PoE enabled ports.

PoE power on RJ-45

Power +: pin 3 & pin 6 : Power –” pin 1 & pin 2. 15.4W (af).

AC to DC power supply

Input: 110V ~ 240VAC, 50Hz ~ 60Hz. Output: 48VDC 2.5A.

Power Consumption

8.0  watts ( max with no PD device connected)


107.8watts ( 7 PoE ports 15.4W/port)


Operation: 0℃ ~ 40 ℃  or 32℉ ~ 104 ℉


Storage Temperature: -10℃ ~ 70 ℃ or  14℉ ~ 158 ℉


Relative Humidity: 5% - 95%


210 mm W x 171 mm D x 43.2 mm H


FCC Class B, CE Mark Class B


100VAC to 240VAC power supply UL listed.



Filtering Address Table

2K entries per device

Packet Filtering Forwarding Rate

10Mbps Ethernet: 14,880/pps

100Mbps Ethernet: 148,800/pps

1000MBase-T Ethernet: 1,488,000/pps.

MAC address Learning

 Automatic update

Transmission Method

 Store – and – Forward
