60mm Fiber Optic Splice Sleeves , PE Fiber optic heat shrink 600V

China 60mm Fiber Optic Splice Sleeves , PE Fiber optic heat shrink 600V supplier

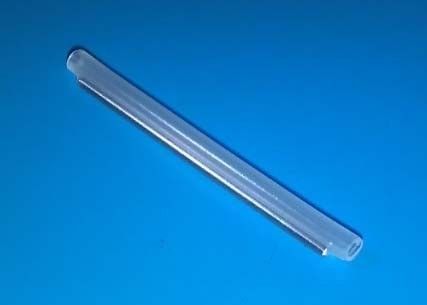

Large Image :  60mm Fiber Optic Splice Sleeves , PE Fiber optic heat shrink 600V

Product Details:

Place of Origin: China
Brand Name: OEM & SINDA ODM
Certification: ISO, ROHS
Model Number: splice sleeve

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Packaging Details: Plastic bag
Delivery Time: 3 days
Payment Terms: T/T ,L/C
Supply Ability: 10000000 Meters per Day
Contact Now
Detailed Product Description





60mm fiber optic protection sleeve , PE Fiber optic heat shrink 600V





Quick Detail:



Place of origin: Guangdong ,China

Material: PE

Type: Insulation sleeving

Heat Shrink Ratio: As request

Application: High Voltage

Rated Voltage: 600V

Tensile Strength: 14MPa

Color: Transparent





Description:





Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.

Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).





Applications:





Optical adapter (SC/FC/MU/LC/PC/APC)

Attenuator, Terminator, Receptacle

WDM,FTTH,PON,CATV, SONET/SDH,Fiber Channel,Gb Ethernet

In-vehicle, Military, Medical





Specifications :





Shrinking Temperature (°C)

110 ~ 130

Radial Shrinking Rate (%)

>50

Axial Shrinking Rate (%)

<10

Low Temperature Property

No crackle at -55°C lasting 4 hours

Normal Operation Temperature (°C)

-55°C ~ + 135°C

Normal Operature Relative Humidity

≤95%

Spark- over Strength (kV/mm)

≥20

Tensile Strength (Mpa)

20

Loss at -40°C

0.03dB

Loss at +60°C RH95%

0.02dB





Standard (for Ribbon 45mm Length



Type

4~6 fiber Single Ceramic Bar

4~6 fiber Double Ceramic Bar

8~12 fiber Single Ceramic Bar

8~12 fiber Double Ceramic Bar

Outer Tube

Outer Diameter

4.4±0.1

4.8±0.1

5.8±0.1

5.8±0.1

Thickness

0.2±0.05

0.2±0.05

0.25±0.05

0.25±0.05

Length

42.0±1

42.0±1

42.0±1

42.0±1

Material

Flexible Polyolefin

Flexible Polyolefin

Flexible Polyolefin

Flexible Polyolefin

Inner Tube

Inner Diameter

2.6 x 1.6±0.1

2.6 x 1.6±0.1

3.5 x 2.2±0.1

3.5 x 2.2±0.1

Length

0.3±0.1

0.3±0.1

0.5±0.1

0.5±0.1

Thickness

40.0±1

40.0±1

40.0±1

40.0±1

Material

EVA

EVA

EVA

WVA

Ceramic Bar

Diameter

3.0±0.2

3.0±0.2

4.0±0.2

4.0±0.2

Length

40.0±0.5

40.0±0.5

40.0±0.5

40.0±0.5

Amount

1

2

1

2

Material

95 Ceramic

95 Ceramic

95 Ceramic







Competitive advantages:



Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

  All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

  We wish to create better future of optical communication industry jointly with both new and existing customers.
