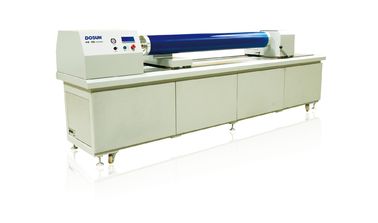

Blue UV Rotary Laser Engraver For Textile Printing Industry , 405nm Laser Rotary Engraving Machine

Blue UV Rotary Laser Engraver For Textile Printing Industry , 405nm Laser Rotary Engraving Machine
Blue UV Rotary Laser Engraver For Textile Printing Industry , 405nm Laser Rotary Engraving Machine Blue UV Rotary Laser Engraver For Textile Printing Industry , 405nm Laser Rotary Engraving Machine Blue UV Rotary Laser Engraver For Textile Printing Industry , 405nm Laser Rotary Engraving Machine

Large Image :  Blue UV Rotary Laser Engraver For Textile Printing Industry , 405nm Laser Rotary Engraving Machine

Product Details:
Place of Origin: China
Brand Name: DOSUN
Certification: ISO9000
Model Number: 2200; 3000; 3500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets
Detailed Product Description
High Light:

rotary screen machine

,

rotary laser engraving

405nm Laser Rotary Engraving Machine , Blue UV Rotary Laser Engraver For Textile Printing Industry

Description:
DOSUN blue-fina™ Laser Engine:Integrating several high technologies ,such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on ,in to one, it provides  revolutionary  power for finer screen engraving.
DOSUN engravine ™ Software :After tens of edition upgrade in past decades, as a profound and professional synthesizer of engraving technology DOSUN  engravine™ Software not only belongs to DOSUN but also to the whole textile printing industry.
DOSUN perfekt™ Hardware Platform:Decades of engraver-manufacturing experience, hundreds of successful user′s case, thousands of vivid technical specific, loads more than perfectness.


Screen Engraving flow:
Coating—low-temperature oven—laseren graving—developing—testing—
high-temperature oven—end ring—end product


Specifications:

Model

BR2200  BR3500

Screen Breadth

2200mm  3500mm

Screen Repeat

640mm(Standard)
820mm/914mm/1018mm(Optional)

Resolution

360/720dpi   (300/600dpi;25/508dpi)

Repeated Accuracy

±0.02mm

Imaging Light Source

405nm  LD

Engraving Speed

6~8min./m(640mm)

Acceptable File Format

BMP/TIFF

Ambient

Temperature:5~40℃
Humidity:30~80%(Non-condensing)
Lighting:Yellow light

Power

1.5KW/220V, 50Hz

Machine Dimension

3650mm×750mm×1220mm(BR2200)
4850mm×750mm×1220mm(BR3500)

Weight

900kg(BR2200) 1200kg(BR3500)



Competitive Advantage:
Noiseless operations
Low power consumption
Easy installation
High reliabilit
