6mm Electro Hydraulic Servo Cnc Press Brake Steel Plate Bending Machine DA52 controller

China 6mm Electro Hydraulic Servo Cnc Press Brake Steel Plate Bending Machine DA52 controller supplier
6mm Electro Hydraulic Servo Cnc Press Brake Steel Plate Bending Machine DA52 controller supplier 6mm Electro Hydraulic Servo Cnc Press Brake Steel Plate Bending Machine DA52 controller supplier 6mm Electro Hydraulic Servo Cnc Press Brake Steel Plate Bending Machine DA52 controller supplier

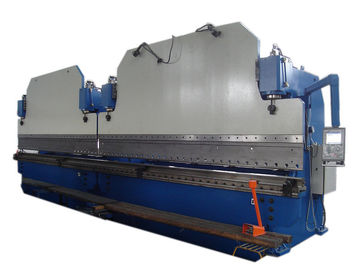

Large Image :  6mm Electro Hydraulic Servo Cnc Press Brake Steel Plate Bending Machine DA52 controller

Product Details:

Place of Origin: Wuxi-china
Brand Name: CMC
Model Number: 2-WE67K-320/6000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: According requirement
Payment Terms: Down Payment 30% T/T ,70% T/T Down Payment 30% T/T ,70% T/T Before Shipping
Supply Ability: According requirement
Contact Now
Detailed Product Description



6mm DELEM DA52 CNC Hydraulic Press Brake , Large Multi-Machine Tandem







Detailed Product Description:



CNC Control System: DELEM DA52 Function: Bending Steel Plates
Product Name: CNC Hydraulic Press Brake Steel Sheet Thickness: 6mm
Steel Sheet Width: 6000mm Use: Metal Plates





Quick Detail:





MULTI-MACHINE Tandem CNC Hydraulic Press Brake 2-320T/6000mm.

DELEM DA52 CNC CONTROL SYSTEM

1. punch force: 6400KN

2. bending max steel sheet width :12000mm

3. bending max steel sheet thickness :6mm





Description:



1. Electro-hydraulic servo system,closed loop controls slider running accuracy.

2. The unique patented technology: bilateral deflection compensation of the large press brake .
3. Open width adjustable inserts die to meet a variety of workpieces.
4. A variety of auxiliary institutions could meet users’ requirements and make the process more convenient and efficient.





Applications:



CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.





Specifications:



Main Technical Features

NO. Name Value Unit Remark
1 Working force 3200 KN
2 Length of table 6000 mm
3 Distance of column 4800 mm
4 Throat depth 720 mm
5 Open height 830 mm
6 stroke 250 mm
7 Speed of ram slide block Approach 70 mm/s
Working 7.5 mm/s
Return 75 mm/s
8 Main motor 22 kW
9 Overall dimension Length 6150 mm
Width 4575 mm
Height 5070 mm
10 Volume of oil tank 2×1400 L











































































Competitive Advantage:



1) Our machine performance quality and chcheap, known in the industry

2) one year guarantee

3) Fast and high quality after-sales service

4) We can design the machines according to customers’ special requirement

5) We have professional team for service.
