Detailed Product Description:
|CNC Control System:||
|Function:||Bending Steel Plates|
|Product Name:||CNC Hydraulic Press Brake||Steel Sheet Thickness:||3mm|
|Steel Sheet Width:||4000mm||Use:||Metal Plates|

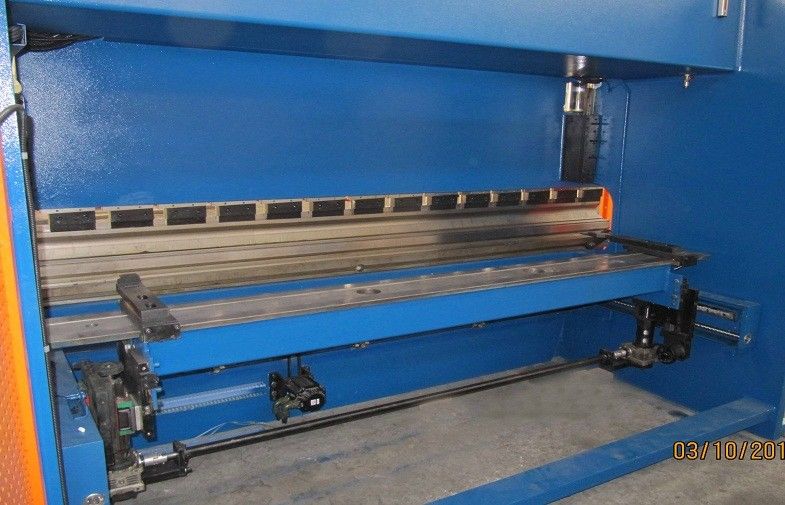

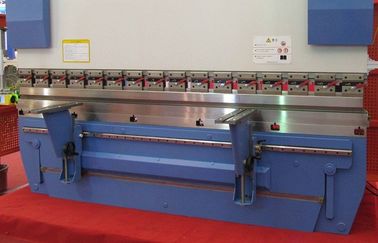

CNC Hydraulic Press Brake for Stainless steel decoration industry 3mm 100T/4000mm
Select And Use DELEM DA52 CNC Control System
1. punch force: 1000KN
2. bending max steel sheet width :4000mm
3. bending max steel sheet thickness :3mm
1. With stylish design, high rigidity, high speed.
2. Electro-hydraulic servo system,closed loop control system controls accuracy.

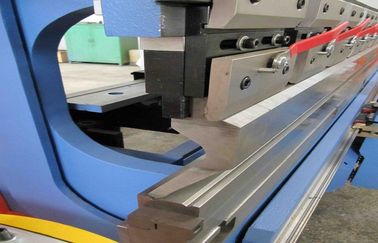

3. Worktable adopts hydraulic deflection compensation to ensure the accuracy of the workpiece.

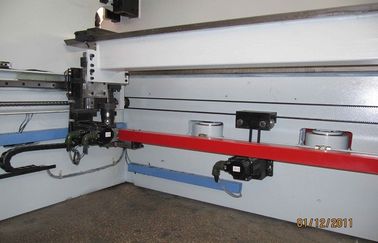

4. Back gauge is driven by servo motor ,adoapted ball-screw ,and linear guide way,it could make sure positioning accuracy.
CNC Hydraulic Press Brake is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.
Main Technical Features
|2||Length of table||4000||mm|
|3||Distance of column||3100||mm|
|7||Speed of ram slide block||Approach||120||mm/s|
|11||Volume of oil tank||380||L|
1) Our machine performance quality and chcheap, known in the industry.
2) One year guarantee.
3) Fast and high quality after-sales service.
4) We can design the machines according to customers’ special requirement.
5) We have professional team for service.
Communication with customers
A: what is difference during DA-52, DA-56, DA-65W and DA66T?
About CNC press brake machines, usually, we suggest four kinds of controller system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their characters:
DA-52 control system:
DA-56 control system:
DA65W controller system:
DA66T controller system:
