Halogen-free Ultra-thin Flame Retardant Heat-shrink Tubing

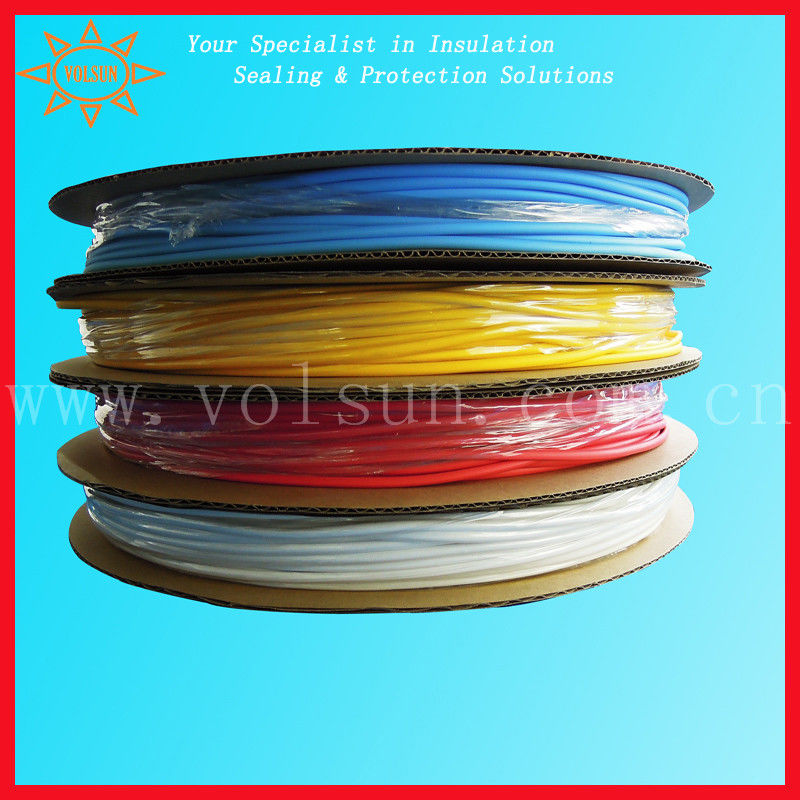

Large Image : Halogen-free Ultra-thin Flame Retardant Heat-shrink Tubing

Product Details:

Place of Origin:	china
Brand Name:	volsun
Certification:	ROHS&UL224
Model Number:	DBRS-125G(2X)

Payment & Shipping Terms:

Minimum Order Quantity:	200m
Price:	RMB1.00
Packaging Details:	in export carton
Delivery Time:	2 weeks
Payment Terms:	T/T/paypal/escrow
Supply Ability:	500000m/day

Contact Now

Detailed Product Description

Highlight:

heat shrink tube

heat shrink tubing

clear heat shrink tube

Description

Halogen-free ultra-thin flame retardant heat-shrink tubing, made of radiation cross-linked polyolefin, carries excellent physicochemical and electrical properties. Typical applications include insulation of electrical connections, rust and corrosion resistance for soldered connections or joints, mechanical and wiring harness protection. This product is widely used in the automotive, agricultural and household Pipe Benders protection, electronics, life consumables, decoration and lighting, communications, ship, aircraft manufacturing and other fields.

Features

Meets UL 224, CAN / CSA C22.2 NO198.1 -99
Heat shrink ratio : 2:1
Halogen-free , low-smoke emission , non-toxic , flexible , flame retardant , swiftly shrinking
Min shrink temperature : 70 ℃
Min full recovery temperature : 120 ℃
Continuous operating temperature : -55 ℃ ~ 125 ℃
Environmental standards : RoHS , IPC/JEDEC-J-STD-709 Class H material
Standard colors: black, white, red , yellow , green , blue and other four international standard colors. More colors are available upon request.

Technical Data

Properties	TypicalData	TestMethod
Tensile strength（MPa）	≥10.4	ASTM D2671
Elongation（%）	≥200	ASTM D2671
Tensile strength after heat aging(MPa)	≥7.3	158℃×168h
Elongation after heat aging(%)	≥100	158℃×168h
Longitudinal change	-5%～+5%	ASTM D 2671
Flammability	VW-1	ASTM D 2671 C
Voltage withstand(Rated voltage 300V)	1500V,1min, without breakdown	UL224
Heat shock	No cracking, no dripping	UL 224，250℃×4h
Dielectric strength	≥15kv/mm	ASTM D 149
Volume resistivity(Ω cm)	≥10¹⁴Ω.cm	IEC 60093
