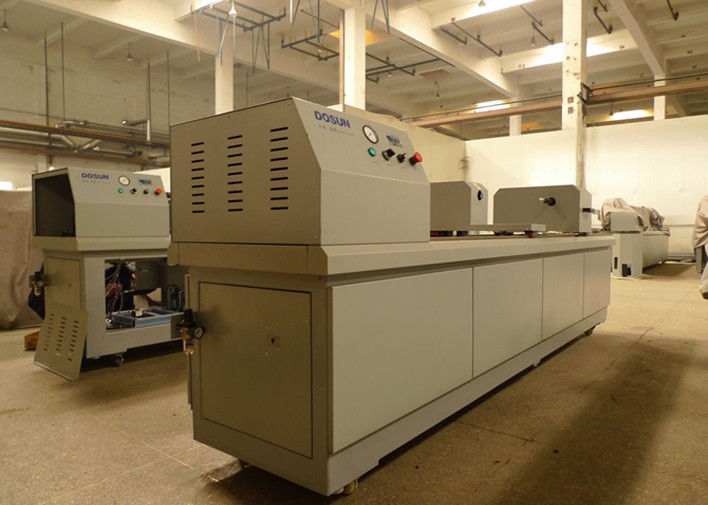

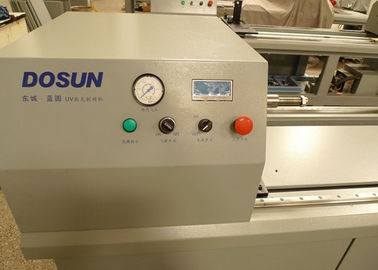

Blue UV Rotary Laser Engraver Rotary Screen Engraving Machine Screen Breadth 2200mm 3500mm

Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm
Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm Blue UV Rotary Laser  Engraver  Rotary Screen Engraving Machine Screen Breadth 2200mm  3500mm

Large Image :  Blue UV Rotary Laser Engraver Rotary Screen Engraving Machine Screen Breadth 2200mm 3500mm

Product Details:
Place of Origin: China
Brand Name: DOSUN
Certification: ISO9000
Model Number: 2200; 3000; 3500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 sets
Detailed Product Description
High Light:

rotary screen machine

,

rotary laser engraving

Blue UV Rotary Laser Engraver Rotary Screen Engraving Machine Screen Breadth 2200mm 3500mm

Description:
DOSUN blue-fina™ Laser Engine:Integrating several high technologies ,such as 405nm laser diode, fiber dot-matrix, automatic focusing, light-power balancing, constant temperature controlling and so on ,in to one, it provides  revolutionary  power for finer screen engraving.
DOSUN engravine ™ Software :After tens of edition upgrade in past decades, as a profound and professional synthesizer of engraving technology DOSUN  engravine™ Software not only belongs to DOSUN but also to the whole textile printing industry.
DOSUN perfekt™ Hardware Platform:Decades of engraver-manufacturing experience, hundreds of successful user′s case, thousands of vivid technical specific, loads more than perfectness.


Screen Engraving flow:
Coating—low-temperature oven—laseren graving—developing—testing—
high-temperature oven—end ring—end product


Specifications:


Model

BR2200  BR3500

Screen Breadth

2200mm  3500mm

Screen Repeat

640mm(Standard)
820mm/914mm/1018mm(Optional)

Resolution

360/720dpi   (300/600dpi;25/508dpi)

Repeated Accuracy

±0.02mm

Imaging Light Source

405nm  LD

Engraving Speed

6~8min./m(640mm)

Acceptable File Format

BMP/TIFF

Ambient

Temperature:5~40℃
Humidity:30~80%(Non-condensing)
Lighting:Yellow light

Power

1.5KW/220V, 50Hz

Machine Dimension

3650mm×750mm×1220mm(BR2200)
4850mm×750mm×1220mm(BR3500)

Weight

900kg(BR2200) 1200kg(BR3500)



Competitive Advantage:
Noiseless operations
Low power consumption
Easy installation
High reliability
