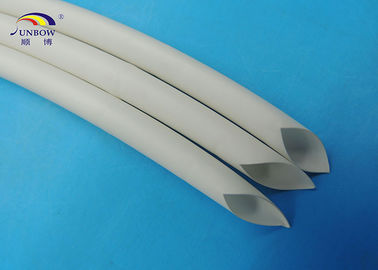

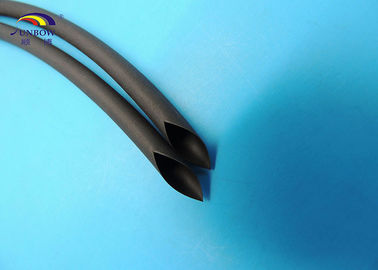

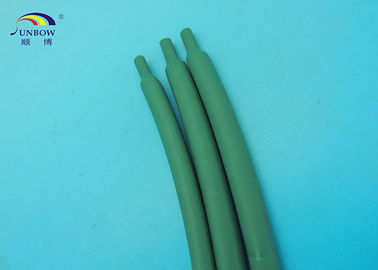

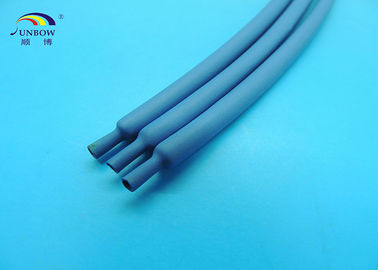

Automobile Fittings Polyolefin Heat Shrink Tubing Blue Green Black White Shrink Ratio 2 : 1

Large Image : Automobile Fittings Polyolefin Heat Shrink Tubing Blue Green Black White Shrink Ratio 2 : 1

Product Details:

Place of Origin:	CHINA
Brand Name:	Sunbow
Certification:	UL no E360625,RoHS/REACH
Model Number:	SB-RSFR-125H

Payment & Shipping Terms:

Minimum Order Quantity:	500m
Price:	USD0.09-16.4 per meter
Packaging Details:	packing by rolls,50-200m/roll
Payment Terms:	Western Union, T/T,paypal
Supply Ability:	9,000,000 meters per month

Contact Now

Detailed Product Description

Characteristics:	Halogen Free, Non-smoke, Non-toxic, Flame-retardant, Soft, Quick Shrink, Stable Performance	Shrink Ratio:	Shrink Ratio 2:1
Working Temperature:	-45ºC ~ 125ºC	Shrink Temperature:	84ºC ~ 120ºC
Color:	Black,blue,grey,red......	Size:	Inner Diameter 0.6-250mm
Highlight:	heat shrink tube , adhesive lined heat shrink tubing

Advantage

1. Great production ability as high as 9,000,000 meters/month

2. Competitive price with quality products

3. Whole color UL certificated with inner diameter 0.6-250mm

Characteristics

1.Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance

2.Shrink ratio: 2:1

3.Shrink temperature: 84ºC ~ 120ºC

Specification

Property		Unit	Test Method	Standard
Tensile Strength		MPA	≥10.4(Before Aging)	GB/T 1040
Tensile Strength		MPA	≥7.3(After Aging)	158ºC*168hrs
Breakage Elongation (%)		%	≥200(Before Aging)	GB/T 1040
Breakage Elongation (%)		%	≥100(After Aging)	158ºC*168hrs
Heat Shock		-	No Sticking & No Cracking	250ºC*4hrs
Cold Blend		-	No Cracking	-30ºC*4hrs
Breakdown Strength		KV/mm	≥15	GB/T 1408
Dielectric Withstand	600V	-	Pass	No Breakdown for 2500V, 60s
Dielectric Withstand	300V	-	Pass	No Breakdown for 1500V,60s
Volume Resistivity		Ω. cm	≥1×10¹⁴	GB/T 1410
Corrosion Performance		-	pass	158ºC*168hrs
Copper Stability		-	pass	158ºC*168hrs
Flammability		-	pass	VW-1

Dimension

Halogen free flame-retardant heat shrinkable tube

Inner Diameter	As Supplied(mm)		After Recovery(mm)		Standard Package	Application Range(mm)
Inner Diameter	Inner Diameter	Wall Thickness	Inner Diameter	Wall Thickness	(m/spool)	Application Range(mm)
Φ0.6	0.9±0.2	0.20±0.05	≤0.40	0.33±0.10	400	0.4~0.7
Φ0.8	1.1±0.2	0.20±0.05	≤0.50	0.33±0.10	400	0.6~0.8
Φ1.0	1.5±0.2	0.20±0.05	≤0.65	0.36±0.10	400	0.75~0.9
Φ1.5	2.0±0.2	0.20±0.05	≤0.85	0.36±0.10	400	0.95~1.4
Φ2.0	2.5±0.2	0.23±0.05	≤1.00	0.45±0.10	400	1.1~1.8
Φ2.5	3.0±0.2	0.23±0.05	≤1.30	0.45±0.10	400	1.35~2.3
Φ3.0	3.5±0.2	0.23±0.05	≤1.50	0.45±0.10	400	1.6~2.7
Φ3.5	4.0±0.2	0.23±0.05	≤1.80	0.45±0.10	400	1.85~3.2
Φ4.0	4.5±0.2	0.25±0.05	≤2.00	0.45±0.10	400	2.1~3.6
Φ4.5	5.0±0.2	0.28±0.05	≤2.30	0.56±0.10	200	2.35~4.0
Φ5.0	5.5±0.2	0.28±0.05	≤2.50	0.56±0.10	200	2.6~4.5
Φ6.0	6.5±0.2	0.28±0.05	≤3.00	0.56±0.10	200	3.1~5.4
Φ7.0	7.5±0.3	0.28±0.05	≤3.50	0.56±0.10	100	3.7~6.3
Φ8.0	8.5±0.3	0.30±0.08	≤4.00	0.56±0.10	100	4.2~7.2
Φ9.0	9.5±0.3	0.30±0.08	≤4.50	0.56±0.10	100	4.7~8.0
Φ10	10.5±0.3	0.30±0.08	≤5.00	0.56±0.10	100	5.2~9.0
Φ11	11.5±0.3	0.30±0.08	≤5.50	0.56±0.10	100	5.7~10
Φ12	12.5±0.3	0.30±0.08	≤6.00	0.56±0.10	100	6.2~11
Φ13	13.5±0.3	0.30±0.08	≤6.50	0.56±0.10	100	6.7~12
Φ14	14.5±0.3	0.35±0.10	≤7.00	0.70±0.10	100	7.3~13
Φ15	15.5±0.4	0.35±0.10	≤7.50	0.70±0.10	100	7.8~14
Φ16	16.5±0.4	0.35±0.10	≤8.00	0.70±0.10	100	8.3~15
Φ17	17.5±0.4	0.35±0.10	≤8.50	0.70±0.10	100	8.8~16
Φ18	19.0±0.5	0.35±0.10	≤9.00	0.70±0.10	100	9.3~17
Φ20	22.0±0.5	0.35±0.10	≤10.00	0.83±0.15	100	10.4~19
Φ22	24.0±0.5	0.40±0.12	≤11.00	0.83±0.15	100	11.4~21
Φ25	26.0±0.5	0.40±0.12	≤12.50	0.90±0.15	50	12.8~24
Φ28	29.0±0.5	0.45±0.12	≤14.00	0.90±0.15	50	14.4~29
Φ30	31.5±1.0	0.45±0.12	≤15.00	1.00±0.15	50	16~29
Φ35	36.5±1.0	0.45±0.12	≤17.50	1.00±0.15	50	18~34
Φ40	41.5±1.0	0.45±0.12	≤20.00	1.00±0.15	50	21~39
Φ45	46.5±1.0	0.50±0.15	≤22.5	1.00±0.15	25	23.5~44
Φ50	≥50	0.50±0.15	≤25.0	1.10±0.15	25	26~49
Φ60	≥60	0.60±0.15	≤30.0	1.20±0.15	25	35~55
Φ70	≥70	0.65±0.15	≤35.0	1.30±0.20	25	40~65
Φ80	≥80	0.65±0.15	≤40.0	1.30±0.20	25	45~75
Φ90	≥90	0.65±0.15	≤45.0	1.30±0.20	25	50~85
Φ100	≥100	0.65±0.20	≤50.0	1.30±0.20	25	55~95
Φ120	≥120	0.65±0.20	≤60.0	1.30±0.20	25	65~115
Φ150	≥150	0.65±0.20	≤70.0	1.30±0.20	25	80~145
Φ180	≥180	0.65±0.30	≤90.0	1.30±0.30	25	95~175
Φ210	≥210	0.65±0.30	≤105.0	1.30±0.30	25	110~205
Φ230	≥230	0.65±0.30	≤115.0	1.30±0.30	25	120~225
Φ250	≥250	0.65±0.30	≤125.0	1.30±0.30	25	130~240

2. halogen free flame-retardant ultra thin heat shrinkable tube

Inner Diameter	As Supplied(mm)		After Recovery(mm)		Package	Application Range (mm)
Inner Diameter	Inner Diameter	Wall Thickness	Inner Diameter	Wall Thickness	(m/spool)	Application Range (mm)
Φ0.6CB	0.9±0.2	0.13±0.05	≤0.40	0.20±0.10	200	0.4~0.7
Φ0.8CB	1.0±0.2	0.13±0.05	≤0.50	0.20±0.10	200	0.6~0.8
Φ1.0CB	1.40±0.20	0.13±0.05	≤0.65	0.20±0.10	200	0.7~1.0
Φ1.5CB	1.90±0.20	0.13±0.05	≤0.85	0.20±0.10	200	0.9~1.4
Φ2.0CB	2.40±0.20	0.13±0.05	≤1.00	0.22±0.10	200	1.1~1.8
Φ2.5CB	2.90±0.20	0.13±0.05	≤1.30	0.25±0.10	200	1.4~2.3
Φ3.0CB	3.40±0.20	0.13±0.05	≤1.50	0.28±0.10	200	1.6~2.7
Φ3.5CB	3.90±0.20	0.13±0.05	≤1.80	0.28±0.10	200	1.9~2.3
Φ4.0CB	4.40±0.20	0.15±0.05	≤2.00	0.30±0.10	200	2.1~3.6
Φ4.5CB	4.90±0.20	0.15±0.05	≤2.30	0.30±0.10	100	2.4~4.0
Φ5.0CB	5.50±0.20	0.15±0.05	≤2.50	0.32±0.10	100	2.6~4.5
Φ6.0CB	6.50±0.20	0.15±0.05	≤3.00	0.32±0.10	100	3.1~5.4
Φ7.0CB	7.50±0.30	0.15±0.05	≤3.50	0.32±0.10	100	3.7~6.3
Φ8.0CB	8.50±0.30	0.15±0.05	≤4.00	0.32±0.10	100	4.2~7.2
Φ9.0CB	9.50±0.30	0.15±0.05	≤4.50	0.35±0.10	100	4.7~8.0
Φ10CB	10.50±0.30	0.15±0.05	≤5.00	0.35±0.10	100	5.2~9.0
Φ11CB	11.50±0.30	0.18±0.05	≤5.50	0.40±0.10	100	5.7~10.0
Φ12CB	12.50±0.30	0.20±0.05	≤6.00	0.40±0.10	100	6.2~11.0
13CB	13.50±0.30	0.20±0.05	≤6.50	0.40±0.10	100	6.7~12.0
Φ14CB	14.50±0.30	0.20±0.05	≤7.00	0.40±0.10	100	7.3~13.0
Φ15CB	15.50±0.40	0.20±0.05	≤7.50	0.40±0.10	100	7.8~14.0
Φ16CB	16.50±0.40	0.22±0.05	≤8.00	0.40±0.10	100	8.3~15.0
Φ17CB	17.50±0.40	0.22±0.05	≤8.50	0.40±0.10	100	8.8~16.0
Φ18CB	18.50±0.40	0.22±0.05	≤9.00	0.42±0.10	100	9.3~17.0
Φ20CB	20.50±0.50	0.25±0.05	≤10.0	0.45±0.10	100	10.5~19.0
Φ22CB	22.50±0.50	0.25±0.05	≤11.0	0.45±0.10	100	11.5~20.5

Color:Standard color is black,other color available upon request
