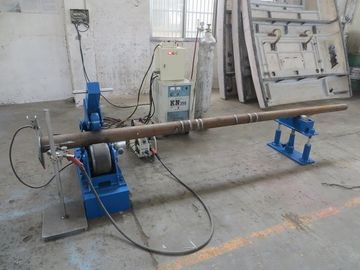

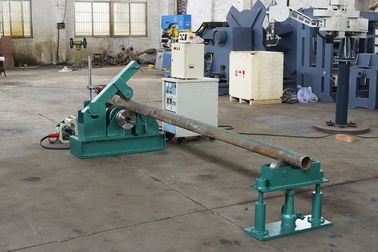

Automatic Base Plate Welding Machine for Conical Pole or Round bar

Large Image : Automatic Base Plate Welding Machine for Conical Pole or Round bar

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	CMC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negociate
Packaging Details:	metal pallet and plastic cover
Delivery Time:	30-35 days
Payment Terms:	TT, LC, FOB, CIF
Supply Ability:	Negociate

Contact Now

Detailed Product Description

Product Name:	Welding Machine，light Pole Making Machine	Application:	Light Pole Welding
Type:	Round，Conical
Highlight:	light pole production line

ROBOT BASE PLATE WELDING MACHINE

MODEL: RW-120/300

Application: :

The welding system are applied for light pole base plate welding production. By real time communication between robot and welding power, according to different welding position to gain good quality welding seam,.

This machine has the followings major applications in the production of street light poles, as follows:

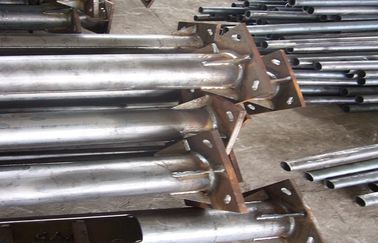

Positioning and assembly of the bottom base plate,
Welding the inner and outer seams between the bottom base plate and the pole shaft
Door frame welding

Suitable for conical poles, round poles, octagonal poles, polygonal poles, equal diameter poles

Main parameter:

NO.	Item	Parameter
1	Pole max diameter	300mm
2	Pole max.length	12m
3	Pole min. thickness	2.5mm
4	Pole max. thickness For welding	For welding :12mm
5	The maximum thickness of the expanded tube that can be deformed	6mm
6	Pole max weight	standard:300kg
7	Max quantity of base plate stiffener	4~8 Note: If the quantity is large and the spacing of the stiffeners is small and the welding torch is affected, half of the stiffeners can be welded
8	Size of base plate stiffener	Normal street light poles and high mast are suitable (Different sizes of stiffener require different molds, which can be processed and manufactured by the user in accordance with the mold provided in the machine)
9	Welding speed	Reference speed 300~500mm/min Different thickness and different welding speed
10	Base plate shape	Circle, square, octagon, multiple sides of four sides
11	Min thickness of base plate	10mm Recommended value, too thin, difficult to weld inside and outside, easy to burn through)
12	Max thickness of base plate	Suitable for normal poles
13	Min size of base plate	150mm×150mm
14	Max size of base plate	Diameter:580mm, or square plate 580x580.
15	Requirements for the consistency of the size of the stiffener and the base plate	Dimension tolerance is within 1mm It is recommended to use laser cutting or plasma cutting to ensure the consistency of the size to obtain a better robot welding effect
16	Suitable for pole type	Conical poles, round poles, octagonal poles, polygonal shapes above octagonal, and equal diameter poles are all suitable
