Product Details:
Payment & Shipping Terms:
|
| High Light: | Straightening machine |
||
|---|---|---|---|
Quick Detail:
| Name | Other Name | Brand Name | CMC |

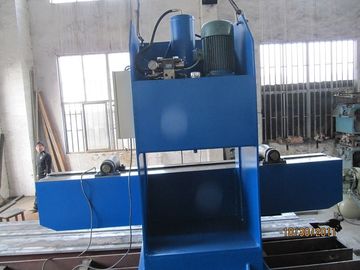

| Straightening Machine |
------- |
Feature | Specially designed for circle and polygon pole/tube |
| Straightening capacity |
Max Diameter: 400mm Min Diameter:58mm |
Our model | JZ-63-4000 |
Description:
APPLICATION: After welding, the pole will be bent, not straight, and then we use this machine to make the light pole straight.
Specifications
| TECHNICAL PARAMETER | |||
| Name | Unit | Value | |
| Max. Pole diameter | mm | 650 | |
| Min. Pole diameter | mm | 58 | |
| Nominal working pressure | KN | 630 | |
| Length of worktable | mm | 4000 | |
| Distance between Housing | mm | 900 | |
| Throat Depth | mm | 310(Cylinder center to side frame) | |
| Stroke | mm | 400 | |
| Max. Open Height | mm | 600 | |
| Main Motor (for Pump) | Rotate Speed | r/min | 1440 |
| Power | KW | 7.5 | |
| Overall Dimensions | Length | mm | 4000 |
| Width | mm | 1260 | |
| Height | mm | 2230 | |
| Weight | Kg | 3000 | |
