Product Details:
|
High Light: | Servo Cutting Plotter,USB Cutting Plotter |
---|

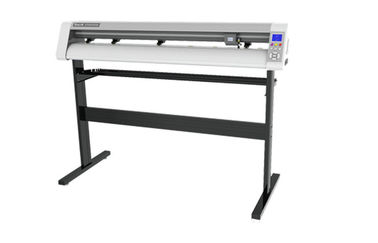

Reflective Film / Sign / Sticker Vinyl Cutting Plotter Machine with Servo Motor Driver
Quick Detail:
1: Model Name: TS48X
2. Max Paper feed width: 1310mm
3. Max Cutting size: 1205mm
4. Max cutting speed: 800mm/s
5. Cutting force: 0-1000g
6: Material: metal + aluminium alloy
Description:
1. First adopt 3.0inch large touch screen display in worldwide, can operate by touching the panel directly.
2. Adopt imported high steel axis to move the paper.
3. Can read the date from USB flash driver directly, which can work independently without PC.
4. USB2.0 interface, transfer the data more fast and more stable.
5. Use New ARM control system.
6. Repeat function, can repeat 500pcs.
7. Support CDR, AI, CAD professional design software,etc to do output directly.
8. Support MAC operation system.
Applications:
Make traffic sign, wall sticker, car sticker, advertising sign, signs, art glass, logo sign, cutting paper, etc.
Specifications:
Cutting Plotters Parameter:
Model Information |
||||||
Grade:Top Grade |
Brand: TENETH |
Market time: 2012-7 |
Warranty: 1 year |
|||
Model Number: TENETH cutting plotter TS-48X |
||||||
Basic Parameter |
||||||
Material |
Sheet metal +aluminum alloy |
Media way |
Floor stand(Optional) |
|||
Max.Paper feed width |
1310MM |
Max.Cutting Size |
1205MM |
|||
Paper feeding system |
Drum steel thorn paper |
Paper feeding way |
Dual paper stick flat manually |
|||
Axis steel distribution |
Universal size distribution |
Number of Axis steel |
7pcs |
|||
Platen device |
Double springs huge pressure roller holder |
Number of Roller holder |
4-6 units |
|||
Driver |
Micro-step driver |
Origin setting |
Set each original points manually |
|||
Cutting Speed |
50-1000MM/S |
Cutting length |
Unlimited |
|||
Cutting Precision |
0.005MM |
Repeatable precision |
<0.005MM |
|||
Cutting force |
5-1000g |
Cutting thickness |
0.05MM-1MM |
|||
Idling Speed |
0-3 gear adjustable |
Noise |
60-65dB |
|||
Control System |
||||||
Mainboard |
32-bit ARM7 CPU,4MB |
Control Panel |
11 silicon buttons + LCD touch screen |
|||
transmission mode |
Serial Port+USB+U disk |
Repeat Function |
Offline a key re-engraved to start |
|||
Repeat Function |
1 - 500pcs |
Memory Function |
Power off doesn't remove source files |
|||
Memory Capacity |
4M |
Transmission speed |
38.4K/56K |
|||
Origin Memory |
Cutting Pause Paper Origin Memory |
Display |
Chinese and English Display Switch |
|||
Plotter Instruction |
Compatible DM/PL,HP/GL |
Output software |
Artcut,signcut flexi CorelDRAW,CAD,Ai,etc |
|||
Cutting Consumable |
||||||
Blade |
Diameter 1.49mm the tungsten cutter |
Drawing Refills |
Atomic Drawing Refills |
|||
Voltage Consumption |
||||||
Power supply |
AC90~240V/50HZ-60HZ |
Working Enviroment |
+5-+35℃,Humidity: 30%-70% |
|||
Standby power consumption |
<25W |
Working Consumption |
<100W |
|||
Volume/Weight |
||||||
Package Size |
1600×340×395mm |
Gross weight |
35KG |
|||
Applicable Industries |
||||||
Advertisement; Glass sandblasting; Marble blasting; Die cutting samples; Article giftware making; Car/Wall stikcer; Paper Pattern; Printing; Logo and Signs. |
||||||
Standard configuration: |
||||||
Machine 1 set,1 set floor stand,1 serial port,1 pcs USB cable,1pcs CD,1pcs blade holder,3pcs blades,1pcs drawing pen. |
||||||
Competitive Advantage:
We have our own researching and developing department,which can research and develop our products by ourselves.We accept OEM order,and make the products according to your special requirements.
