Parking lot Light Pole Machine , Double Hole Drilling machine for 40 ~ 120mm pipe

Parking lot  Light Pole Machine  , Double Hole Drilling machine for 40 ~ 120mm pipe
Parking lot  Light Pole Machine  , Double Hole Drilling machine for 40 ~ 120mm pipe Parking lot  Light Pole Machine  , Double Hole Drilling machine for 40 ~ 120mm pipe Parking lot  Light Pole Machine  , Double Hole Drilling machine for 40 ~ 120mm pipe

Large Image :  Parking lot Light Pole Machine , Double Hole Drilling machine for 40 ~ 120mm pipe

Product Details:
Place of Origin: Wuxi, China
Brand Name: CMC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: Down payment 30% T/T, 70% T/T before shipping
Detailed Product Description
Highlight:

light pole production line

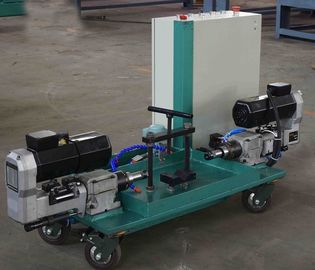

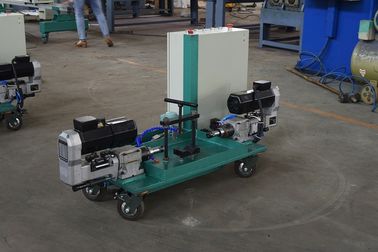

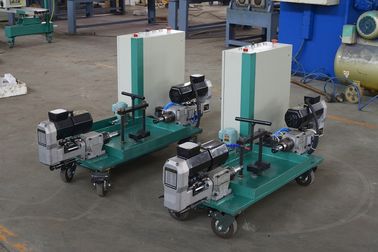

POLE TOP HOLE DRILLING MACHINE

(Automatic type, 6 or 8 holes once finished)

Model : FHE12 (for hole diameter max. 12mm)





1.Application:

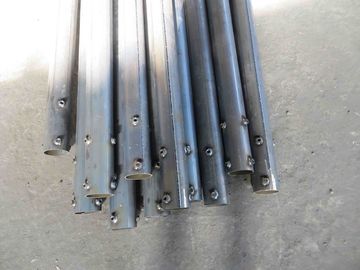

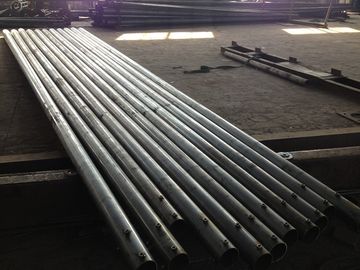

It is suitable for light pole top fixing holes quick drilling process.





Put the light pole on the machine, the machine top stop will control the first 3 or 4 holes to top of the pole distance. Push the start button, the pneumatic clamp will clamp the pole first, then the 3 or 4 drilling heads will finish 3 or 4 holes first , then the clamping system will move pole to next position to do drilling automatic, until finish, the 3 or 4 drilling heads will stop and return back the original position. All these process are automatic. Only push one start button, all steps will be finished.

The machine is equipped with two installation locations and can be equipped with three or four uniformly distributed power heads. Used for processing 6 or 8 holes, customers choose to adjust according to their requirements.





2. The main technical indicators:

Technical indicators Technical parameters
Suitable for pipe diameter 50~200mm
Suitable for pipe thickness 2~10mm
Max. hole diameter 12mm
Drilling cutting feed stroke 0~30mm
Feed driving force钻 800N
No loading rotation speed (550rpm)
Drilling motor 1100W * 4sets
Air consumption for single head 3~6 L/stroke
Total power consumed 4.4 KW
Power supply 380V,50Hz 3 phases,or according customer requirement
Overall dimension(L×W×H) 1825x1632x1660
Weight 1000kg
