MITECH MR200 Portable / Digital Surface Roughness Tester for Paint / Ink

Name: MITECH MR200 Portable / Digital Surface Roughness Tester for Paint / Ink
Brand: MITECH
SKU: MR200
Rating: 4.6 (143 reviews)

Large Image : MITECH MR200 Portable / Digital Surface Roughness Tester for Paint / Ink

Product Details:

Place of Origin:	China
Brand Name:	MITECH
Certification:	ISO CE GOST
Model Number:	MR200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export carton box
Delivery Time:	Goods in stock, could send out within three days
Payment Terms:	100% T/T, Paypal or Wester Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

Highlight:

surface roughness testers

surface roughness testing machine

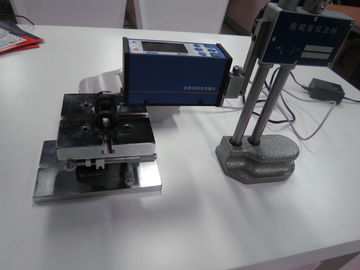

MITECH MR200 Portable / Digital Surface Roughness Tester for Paint / Ink

MR200 high precious surfaces roughness measure instrument

Description:

The MR200 surfaces roughness measure instrument is suitable for shop floor use and mobile measure to need of a small handheld instrument, it operation simple, function overall, measure fast, accuracy stability, take convenience.The MR200 is capable of evaluating surface textures with a variety of parameters according to various national standards and international standard.The measurement results are displayed digitall/graphically on the LCD,and output to the printer.

Specifications:

Name		Content
Measuring range	Z Axis(Vertical)	160μm
	X Axis(Horizontal)	17.5mm
Resolution	Z Axis(Vertical)	0．01μm/±20μm
		0．02μm/±40μm
		0．04μm/±80μm
Measurement item	Parameters	Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS) ,RSk,R3z,Rmax,Rpc,Rmr；
	Standard	ISO,ANSI,DIN,JIS
	Graphic	Roughness profile,Material ratio curve,Direct profile
Filter		RC,PC-RC,Gauss,D-P
Sampling length (lr)		0.25,0.8,2.5mm
Assessment length ln)		Ln= lr×n n=1~5
Pickup	principle	Differential inductance
	Stylus	Natural Diamond, 90B cone angle, 5μm tip radius
	Force	<4mN
	Skid	Ruby,Longitudinal radius 40mm
	Traversing speed	lr=0.25, Vt=0.135mm/s
		lr=0.8, Vt=0. 5mm/s
		lr=2. 5, Vt=1mm/s
		Return Vt=1mm/s
Accuracy		Less than or equal to ±10%
Repeatability		Less than or equal to 6%
Power supply		Built-in Lithium ion battery,AC adapter 8.4V,800mA
L×W×H		119×47×65mm
Mass		approximately 380g

Competitive Advantage:

15 parameters: Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS) ,RSk,R3z,Rmax,RPc,Rmr；
High accuracy inductance pickup;
Four filtering methods of RC, PC-RC, GAUSS and D-P;
Compatible with four standards of ISO, DIN, ANSI and JIS;
Can store 15 sets of measurements results
128×64 dot matrix LCD displays all parameters and graphs;
DSP chip is used to control and process data with high speed and low powerconsumption;
Built-in lithium ion chargeable battery and control circuit have high capacity, without memory effect. Consecutive work time is longer than 20 hours;
Design of mechanical and electrical integration is adopted to achieve small bulk, light weight and easy usage;

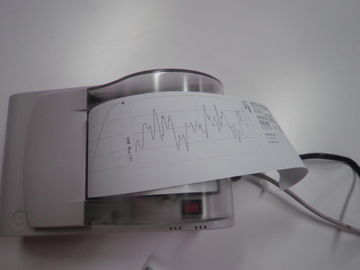

Can be connected to TIME TA220s printer to print all parameters and graphs;
Built-in standard RS232 interface enables communication with PC;
Automatic switch off, memory and various prompt instructions;
Optional printer, analysis software and measurement platform.
