Industrial Street Light pole machine / making equipment for Lamp post

Industrial Street Light pole machine / making equipment for Lamp post
Industrial Street Light pole machine / making equipment for Lamp post Industrial Street Light pole machine / making equipment for Lamp post Industrial Street Light pole machine / making equipment for Lamp post

Large Image :  Industrial Street Light pole machine / making equipment for Lamp post

Product Details:
Place of Origin: wuxi,china
Brand Name: CMC
Certification: iso
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Detailed Product Description
High Light:

light pole production line

Quick Detail:



Name Other Names Brand Name CMC
Light pole machines

light pole making equipments

Light pole producing line

Lamp post making machines



Feature We can supply the whole production line.And we also can specially design for customer
Light pole range

Pole diameter:60-500mm

Pole length:16000mm

Usage Industrial Street light pole industrial

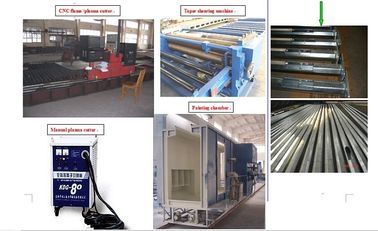

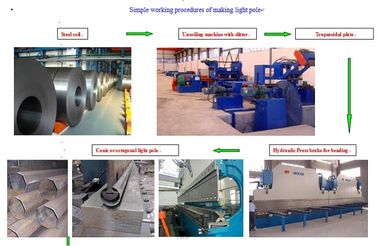

1. Light Pole Taper Steel Plate Cutting Process

    We use cut to length machine to uncoil, level, cut, scrape edge and taper, then we can get one side small width, one side big width steel plate.

Industrial Street Light pole machine / making equipment for Lamp post 0





2. Light Pole Taper Steel Plate Bending Process

    We use CNC tandem press brake machine to bend conical or polygon shape pole by special tooling.

Industrial Street Light pole machine / making equipment for Lamp post 1

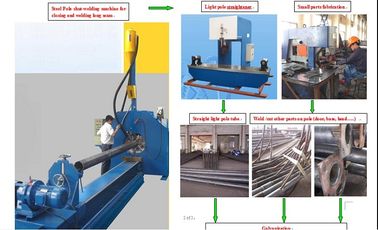

3. Light Pole Shut Welding Machine Process:

After bended by press brake machine, the pole has been formed, but there will a seam.Therefore we use our special design shut welding machine to weld this seam automatically.



Industrial Street Light pole machine / making equipment for Lamp post 2

Industrial Street Light pole machine / making equipment for Lamp post 3

Industrial Street Light pole machine / making equipment for Lamp post 4

Industrial Street Light pole machine / making equipment for Lamp post 5

4. Light Pole Straighten Process:

After welding, the pole will be bent, not straight, then we need use straightening machine to straight.

Industrial Street Light pole machine / making equipment for Lamp post 6

5. Base Plate Making Process

We use shearing machine to cut square shape , then ironwoker to punch holes.

Industrial Street Light pole machine / making equipment for Lamp post 7

Industrial Street Light pole machine / making equipment for Lamp post 8

Industrial Street Light pole machine / making equipment for Lamp post 9

6. Base Plate Automatcial Welding Process

we use this equipment to weld base plate with light pole

Industrial Street Light pole machine / making equipment for Lamp post 10

Industrial Street Light pole machine / making equipment for Lamp post 11

7. Light pole door cutting machine

We specially designed this light pole door cutting machine to cut door for conical, octagonal light pole.The cutting shape can be circle, square, rectrangle...

Industrial Street Light pole machine / making equipment for Lamp post 12

9. Light pole top part drilling hole process

It is suitable for light pole top fixing hole quick drilling process.Once finish four holes.



Industrial Street Light pole machine / making equipment for Lamp post 13

8. Light pole top part bending process

We design special fixture to clamp light pole top part, then use winch to pull and bend

Industrial Street Light pole machine / making equipment for Lamp post 14
