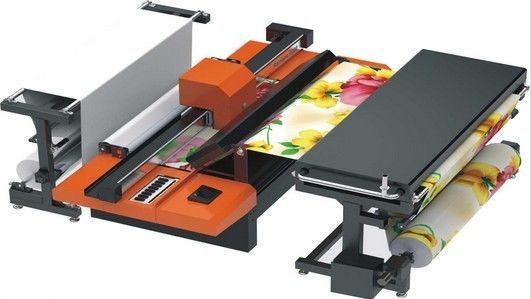

High speed belt digital inkjet Fabric Printing Machine

High speed belt digital inkjet Fabric Printing Machine
High speed belt digital inkjet Fabric Printing Machine High speed belt digital inkjet Fabric Printing Machine

Large Image :  High speed belt digital inkjet Fabric Printing Machine

Product Details:
Place of Origin: China Jiangsu
Brand Name: KD
Certification: CE Mark
Model Number: KD-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: container
Delivery Time: 50 days after confirmation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 sets in 2 two months
Detailed Product Description
Max. Printing Width: 3200mm Printing Speed: 200㎡/h
Color Configure: 8 Colors
High Light:

heat-press printing machine


vertical printing machine

High - speed belt digital inkjet Fabric Printing Machine Pigment ink


KD-600 series high-speed belt digital inkjet printing machine


Product description


KD-600 serious high-speed belt type digital inkjet printer adopts the advanced digital inkjet printing technology, the speed can catch 200 m ²/h, the highest jet printing accuracy can reach 1200DPI, equipped with belt to continuous feeding, A-type frame and infrared automatic drying device, perfectly meet industrial huge production demand.




1. Use import industrial grade stainless steel compression sprayer, long service life, high reliability and maximum print speeds of up to 200 m/h.

2. Using a large-capacity data-processing and the intelligent control for inking technology, 1200DPI high-precision high-speed print mode.

3. Configuring 8-color printing color model, seems vivid.

4. Using injection pressure regulator technology, the light and heavy fabrics can print beautiful, full of patterns.

5. Using efficient conduction band feed system and the precise and reliable conduction band corrective mechanism to ensure continuous fabric flat and stable delivery, and ensure smooth cloth at high speed continuous printing.

6. Quick and easy to configure automatic nozzle cleaning device to ensure the ink nozzles maintain fluency in a non-continuous operation.

7. Imported precision servo motor and encoder system to ensure precise positioning of the printing process.

8. Automatic ink supply and use of closed degassing systems for sprinklers stable during long continuous printing ink continued.

9. A unique design of the shelves to put the cloth off the cloth, carrying Large pieces of fabric constant tension unwinding ensure fabric stability under large-scale production mode straight delivery.

10. use of color and rich, high green ink dye, coloring agents and the main ingredient of which are made of non-toxic materials in compliance with international environmental standards, achieve energy saving, clean production.

11. Uses far-infrared drying device, to ensure the stability of the drying effect, and non-stick color, no pollution, high efficiency.

12. Easy to operate, easy to learn, simple ordinary dyeing worker training to operate.

13. Provide complete digital printing solutions, and provide sizing machine, steaming machines, washing machines, etc. selection services.

14. To provide customers with improved technology support and timely technical services.


Technical parameters


Nozzle type

Imports of industrial grade stainless steel piezo nozzles, sprinklers and medium distance 1-35mm may need to set up

Output Accuracy

 Highest 1200DPI, can choose according to need

 Efficient width




 Printing speed

 Ordinary quality print speed 200m² / h, standard quality print speed 150m²/ h, high-quality print speed 100m² / h

 Suitable ink

Reactive, acid, disperse, coatings, automatic ink supply

 Color model

8 COLOR CMYKLclmlylk

 Suitable fabric

Cotton, hemp, silk, nylon, chemical fiber, wool, etc.


Fabric transport

Conduction band transmission, automatic winding, guide with automatic cleaning, automatic correcting, with far-infrared drying system automatically

 Image format

Rpf, apf, bmp, tif, jpg, pcx, eps

 Equipment size




Equipment weight




Device power consumption

7.5kw)AC220V (drying systems 380VAC) 50-60HZ, 9.5kw (which drying system 7.5kw)

 Device power consumption


 Working environment

 Temperature of 20 degrees Celsius, humidity 60% -80%
