High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth

High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth
High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth

Large Image :  High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth

Product Details:
Place of Origin: China
Brand Name: DOSUN
Certification: ISO9000
Model Number: 2200;3200;3500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 10 sets
Detailed Product Description
High Light:

rotary engraving machine

,

rotary screen machine

High Resolution Rotary Inkjet Engraver System 2200 / 3200 / 3600 mm Screen Breadth

Description:

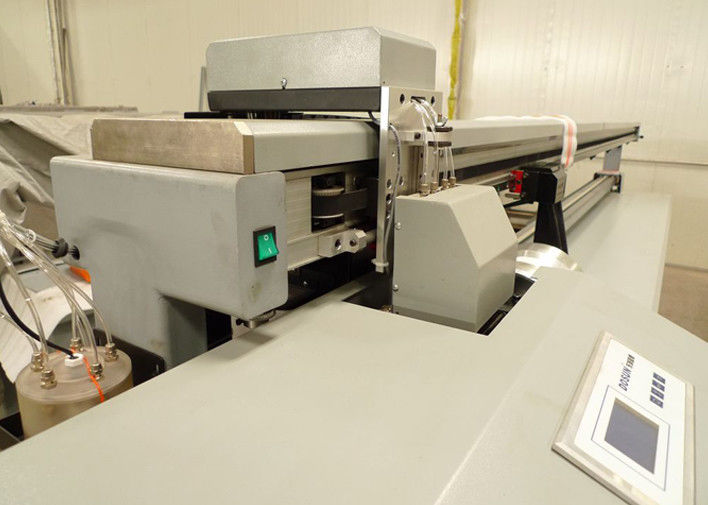

DOSUN rotary engraver is a digital equipment of computer-to-screen (CTS), It prints design directly on coated nickel screen with special ink, and cure the resin with UV light. Comparing to traditional engraver, it saves film cost. DOSUN engraver makes the design head-end joint perfectly.


The Characteristics:
◆   High speed inkjet printhead.
◆   The printhead makes up 7 group nozzles, each group contains 96 nozzles.
◆   DOSUN engraver has a static balanced ink supply system, and this insures the ink does not shake in working, so the ink pressure inside the printhead keep stable . It will enhance the engraving quality.
◆   DOSUN ink-supply system nearly need no maintenance.
◆   DOSUN engraving software supports file in single color. Many other engravers only support file in black, and the color file must be changed into black file.
◆   With high precision and long life reducer, DOSUN engraver makes the step by step joints almost


Application:
Rotary printing


Specifications:


The Specification of DOSUN Rotary Inkjet Engraver

Model

DOSUN-2200R

DOSUN-3200R

DOSUN-3600R

Screen breadth

2200

3200

3600

Screen repeat

641mm/820mm/914mm/1018mm Optional

Resolution

360DPI/720DPI

Repeated accuracy

±0.02mm

Scan motiom

Servo motor

Model of print head

Piezoelectricity

Nozzles of inkjet head

672

Engraving speed

10~11 Min./m²

UV-exposing

Integrated automatic exposure system(1KW/220V)

Acceptable file format

BMP/TIFF

Temperature

20~30℃

Humidity

55~80%



Competitive Advantage:
Noiseless operations
Low power consumption
Easy installation
High reliabilit
