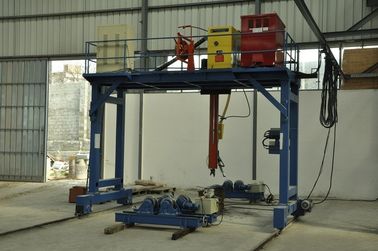

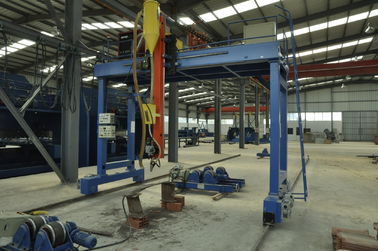

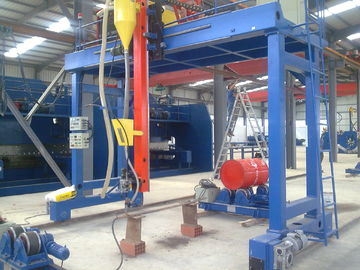

High efficiency Light Pole Machine , High Mast Gantry welding machine for large pipe / tube

Quick Detail:

Application:

It is for final welding process for high mast longitudinal weld-seam

Description:

• Component configuration supplied by seller

• travel driving motor :YDS100-4 low speed motor 1 set
• welding lifting choose SCWS-08-1.1W deceleration machine 1 set
• flux recovery fitting 1 set, powder bucket 1 set, suction 1 piece, sucker 1×5m

D,submerged arc welding machine 1 set

E,power cord 3×16m㎡,60m

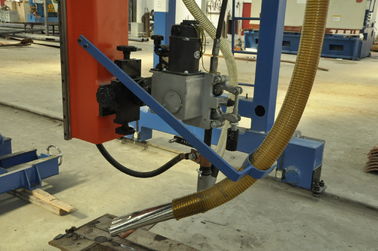

F,arc guidance 1 sets(including welding gun)

G,cable movement pulley

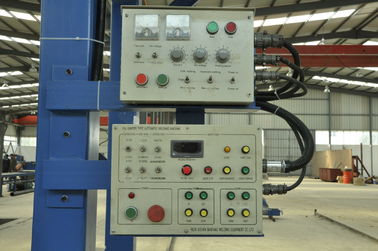

H,electrical apparatus box 1 set control box 1 set

• technical documents

• Whole machine foundation drawing
• machine instructions (electrical appliance diagrams, line hanger drawing, V frame drawing)

• parts supplied by buyer

A,24Kg track 40m

B,Make base according to supplied information

C,Gliding wire frame

D,welding V frame or roller frame

E,lubrication for deceleration machine (machine oil 20#)

High mast welding process:

We have two ways

1)High efficiency way,use high mast assembly and straightening machine to close the high mast pole

2)Economical way
