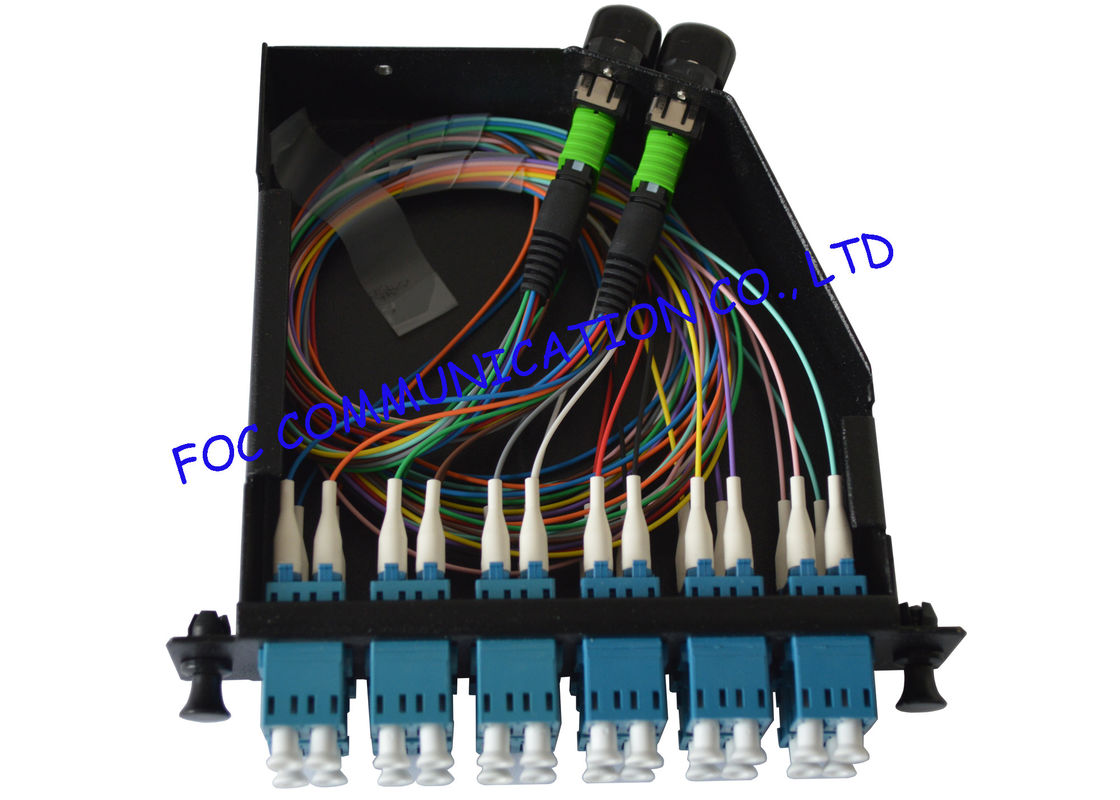

Fiber Optic Patch Panel 24Core MPO Cassette For Telecoms

Name: Fiber Optic Patch Panel 24Core MPO Cassette For Telecoms
Brand: Fiber Optic Patch Panel 24Core MPO Cassette For Telecoms
SKU: Fiber Optic Patch Panel 24Core MPO Cassette For Telecoms
Rating: 4.7 (116 reviews)

Large Image : Fiber Optic Patch Panel 24Core MPO Cassette For Telecoms

Product Details:

Place of Origin:	China
Brand Name:	FOCABLE
Certification:	RoHS Compliant, ISO Certificate
Model Number:	MPO Cassette 24 Core

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Packaging Details:	1PCS/BOX
Payment Terms:	Western Union, T/T
Supply Ability:	5000PCS/MONTH

Contact Now

Detailed Product Description

Rack Mount:

LGX Type Rack Mount Cassette

Material:

Cold Steel

Port:

24 Port

Connector:

MPO/APC-LC/UPC

Highlight:

optical fiber patch panel

mpo fiber patch panel

Fiber Optic Patch Panel 24Core MPO Cassette For Telecoms

Cassettes have one MPO connection (12-fiber) or two MPO connections (24-fiber) on the back of each cassette.

Highest density option uses small form factor connectors (MT-RJ or LC) Cassettes house MPO one or two 12-fiber break-out assemblies.

Cassettes have the same footprint as snap-in adapter plates which allow them to mount in enclosures that accept snap-in adapter plates.

Cassettes come pre-tested and ready for immediate use.

Features
High return loss, Low insertion loss
Easy to operate and install
Compact design, up to 12 fiber ribbon
Fully support high speed network protocols
Component of space-saving system design

Applications
1. CATV, LAN
2. Active device termination
3. Telecommunication networks
4. Gigabit applications (ATM, Ethernet)

Specifications

Item	SM APC	SM PC	MM PC
Insertion Loss	≤0.4dB	≤0.4dB	≤0.3dB
Return Loss	≥60dB	≥50dB	≥20dB
Operating Temperature	–40 °C to +75 °C
Durability	≤0.3 dB typical change , 500 matings
Operating Wavelength	SM=1310 & 1550nm , MM=850nm
