Ethernet Cassette Fiber Optic Patch Panel For Telecoms / mpo fiber patch panel

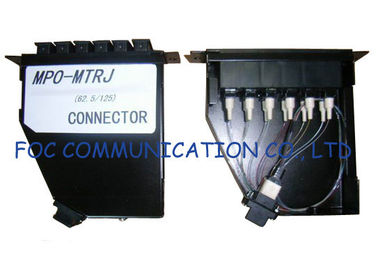

Fiber Optic Patch Panel For Telecoms / MPO Cassette Full Loaded With MTRJ Pigtails

MPO cassettes and racks are industry standards designed to meet the specification rack mount panels, easy installation. Input use MTP/MPO high density multi-fibers connectors adapter and output usually with LC,SC,FC,E2000 adapter and so on. It fit for different installation environment and easy to install between different trans mission equipment or different patch panel. Our connectors are 100% factory tested and can meet your special requirements. All the MTP/ MPO connector compliance with Telcordia GR-1435-Core Compliant.

The MPO connector is a high-density, multi-fiber connector that typically terminates 12 fibers in one connector approximately the same size of a one SC-style fiber connector. MPO plug-and-play cassettes include an MPO interface on one side broken out to12 individual fiber interfaces on the other side.

These cassettes can be deployed in an optical distribution frame for higher density applications or in fiber panels to connect the main distribution area (MDA) to the equipment distribution area (EDA) in the data center. Plug-and-play trunk cables are round 12-fiber cables that are preterminated in the factory with MPO connectors on both ends.

Applications

Space saving in central offices, POPs and data center

Other data center applications

Features

Constructed from NTT-certified MPO 12-fiber connector

Designed for direct mounting into 1U 19” panel – 3 cassettes per panel

One or 2 MPO connectors and 12 SC or dual LC adaptors

Fully factory tested

MPO connectors are provided with alignment pins (M)

High performance in IL&RL

100% pre-terminated tested

12 or 24 fibers

1U,2U,3U,4U or customized

SM,OM1,OM2,OM3,OM4 or customized

Specifications
