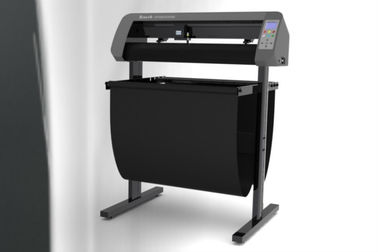

Contour Cut 24'' Laser Cutting Plotter , Vinyl Cutter Machine with ARM / MAC System

Detailed Product Description
High Light:

vinyl cutter and plotter

,

fabric cutting plotter





Counter Cut 24'' Laser Cutting Plotter Vinyl Cutter ARM / MAC System 740mm Width





Quick Detail:



1:  Model Name: TH740XL

2. Max.Paper feed width: 740mm

3. Max. Cutting size: 635mm

4. Max. cutting speed: 500mm/s

5. Cutting force: 5-1000g

6: Material: metal + aluminium alloy

7. Interface: USB / Serial Port / U disk







Description:



1. First adopt 3.0inch large touch screen display in worldwide, can operate by touching the panel directly.

2. Adopt imported high steel axis to move the paper.

3. Can read the date from USB flash driver directly, which can work independently without PC.

4. USB2.0 interface, transfer the data more fast and more stable.

5. Use New ARM control system.

6. Repeat function, can repeat 500pcs.

7. Support CDR, AI, CAD professional design software, etc to do output directly.

8. Support MAC operation system.





Applications:



Make wall sticker, car sticker, advertising signs, signs,art glass, paper cutting,etc.





Specifications:



Cutting Plotters Parameter:

Model Information

Grade:Top Grade

Brand: TENETH

Market time: 2012-7

Warranty: 1 year

Model Number: TENETH cutting plotter TH740XL

Basic Parameter

Material

Sheet metal +aluminum alloy

Media way

Floor stand(Optional)

Max.Paper feed width

740MM

Max.Cutting Size

635MM

Paper feeding system

Drum steel thorn paper

Paper feeding way

Dual paper stick flat manually

Axis steel distribution

Universal size distribution

Number of Axis steel

4pcs

Platen device

Double springs huge pressure roller holder

Number of Roller holder

3 units

Driver

Micro-step driver

Origin setting

Set each original points manually

Cutting Speed

50-500MM/S

Cutting length

Unlimited

Cutting Precision

0.005MM

Repeatable

precision

<0.005MM

Cutting force

5-1000g

Cutting thickness

0.05MM-1MM

Idling Speed

0-3 gear adjustable

Noise

60-65dB

Control System

Mainboard

32-bit ARM7 CPU,4MB

Control Panel

11 silicon buttons + LCD touch screen

transmission mode

Serial Port+USB+U disk

Repeat Function

Offline a key re-engraved to start

Repeat Function

1 - 500pcs

Memory Function

Power off doesn't remove source files

Memory Capacity

4M

Transmission speed

38.4K/56K

Origin Memory

Cutting Pause Paper Origin Memory

Display

Chinese and English Display Switch

Plotter Instruction

Compatible DM/PL,HP/GL

Output software

Artcut,signcut flexi CorelDRAW,CAD,Ai,etc

Cutting Consumable

Blade

Diameter 1.49mm the tungsten cutter

Drawing Refills

Atomic Drawing Refills

Voltage Consumption

Power supply

AC90~240V/50HZ-60HZ

Working Enviroment

+5-+35℃,Humidity: 30%-70%

Standby power consumption

<25W

Working Consumption

<100W

Volume/Weight

Package Size

740×340×395mm

Gross weight

12KG(15KG)

Applicable Industries

Advertisement; Glass sandblasting; Marble blasting; Die cutting samples; Article giftware making; Car/Wall stikcer; Paper Pattern; Printing; Logo and Signs.

Standard configuration:

Machine 1 set,1 set floor stand,1 serial port,1 pcs USB cable,1pcs CD,1pcs blade holder,3pcs blades,1pcs drawing pen.



Competitive Advantage:



We have our own researching and developing department,which can research and develop our products by ourselves.We accept OEM order,and make the products according to your special requirements.





3 Interface: ( USB / U disk / Serial Port)

Contour Cut 24'' Laser Cutting Plotter , Vinyl Cutter Machine with ARM / MAC System 0



Carriage:



Contour Cut 24'' Laser Cutting Plotter , Vinyl Cutter Machine with ARM / MAC System 1



3.0 Inch Touch Screen With Silicon Buttons :



Contour Cut 24'' Laser Cutting Plotter , Vinyl Cutter Machine with ARM / MAC System 2
