Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm

Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm
Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm

Large Image :  Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm

Product Details:
Place of Origin: wuxi -china
Brand Name: cmc
Model Number: 450/1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: naked packing and fixed in container properly
Delivery Time: 50-60 days
Payment Terms: FOB/CIF
Supply Ability: Negociate
Detailed Product Description
High Light:

light pole production line



450 Seam Welder - Light Pole Machine For Light Pole Seam Welding



Quick Detail:

Name Other Name Brand Name CMC
Light pole shut-welding machine

Seam welder

Close welding machine

Pole welding machine

Tube welding machine



Feature Specially designed for circle and polygon pole/tube
Welding capacity

Diameter: 60-450mm

Thickness: 2.8—6mm

Length: max 16 meters

Our models

450/12000-16000







Description:

APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 12000MM.

LIGHT POLE SHUT-WELDING MACHINE MODEL: 450/12000, it is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.



1. Long working table with rack for pull dolly.

2. Dolly for pulling pole.

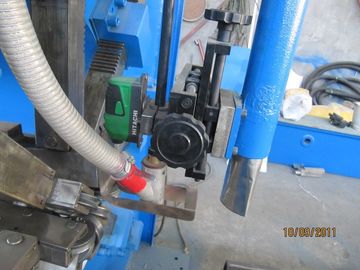

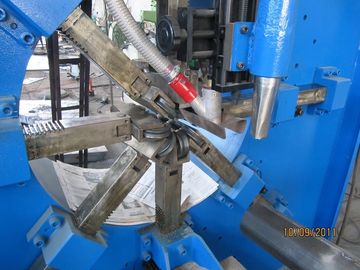

3. Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal and circle pole).

4. Submerged Arc Welding and Gas-shielded welding (CO2) Welding system, including welding wire feeding system.

5. The flux recovering system.

6. Back support unit.





Specifications

TECHNICAL FEATURES
1

Workable Diameter



60-450mm,
2

Workable length



12000 mm
3

DOLLY LENGTH



1500 MM
4

Suitable light pole Thickness base on mild steel Q235



Light pole diameter: 60~450mm 2.8~3mm
Light pole diameter:70~450mm 2.8~4mm
Light pole diameter: 250~450mm 2.8~6mm
5

Power of Motor for Pump



4 KW
6

Power of Motor for pulling dolly



4 KW, AC speed changeable type.

4 KW.

7 Welding Machine

630A, (Submerged Arc Welding and Gas-shielded welding(CO2) Welding

8

Welding wire diameter



1.2,1.6~2mm welding wire, according the pole thickness to do selection

9 Working Speed  1.1~2m/min (Note: different thickness speed will be different
10 Gross weight  7000 kg
11

Overall sizes (mm)

22000x2000x2000 mm





14meter table + 7 meter’s back support also included

OPTION:( detail see attached photos)

  1. Lincoln welding machine (USA BRAND)

Note:, If chose the Lincoln welding machine,normally it is suitable for Submerged Arc Welding process

  1. Fast motorized return back for dolly

Note:for the standard machine, the dolly return back can be motorized with working speed, it is very slow for return back process. So, normally, the operator will open the dolly clutch and push the dolly by manual.

In order to reduce the manpower, we have option: Fast motorized return back for dolly. The operator only push button, the dolly will be back to the welding head.

See attached detail photos.

  1. Both Side additional hydraulic cylinder

It is suitable for small diameter big thickness light pole, or steel plate with high tensile strength light pole.

With this additional option, the diameter from 60~450mm, thickness 2.8~6mm, all pole can be suitable. And easy for operation.





3. Product basic information



Place of Origin: China
Brand Name: CMC
Model Number: 450/12000





4.Trade clause

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: 50-60 days
Payment Terms: Ex works/ FOB SHANGHAI/ CIF





5. Light pole making process



Automatic 450 Seam Welder , lighting pole welding machine 450 / 12000mm 0
