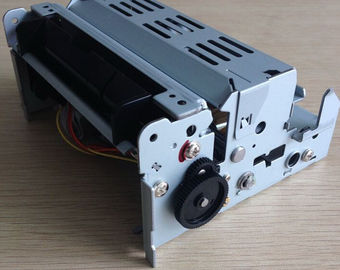

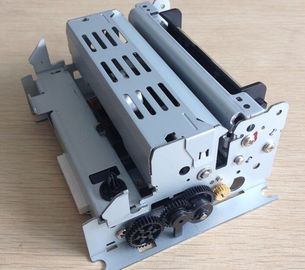

Auto Cutter Impact Dot Matrix Printer Compatible With Epson M-U110II

Mechanism

 MSP1

Printing method:

serial impact dot matrix (9 pins)

Printing direction:

bi-directional (logic seeking control)

Printing speed:

4.4 lines/sec (max 8.9 lines/sec)

Number of columns:

approx 42 columns

Total no of dots:

210 dots

Font:

7*9 matrix

Number of pins:

9 pins

Character size(W*H):

1.25*3.12mm(7*9 dots)/1.25*2.42mm(7*7 dots)

Character pitch:

1.59mm

Line spacing:

minimum 0.176mm (1/144 inch)

Home position sensor:

photo interrupter

Paper end sensor:

photo interrupter

Stepping motor voltage:

DC 24V±5%

Paper width:

76mm ( normal paper)

Copy capability:

original+1 copy

Ink ribbon cartridge:

two colors( red and black), single color(black)

Paper feeding speed:

34 lines/sec

External dimension:

127*98.2*53 mm

Weight:

0.47 kg

Reliability: mechanism:

MCBF 5.0 million lines/ head: 100 million characters

Accessories:

paper near end sensor, paper presenter unit, paper bezel, power supply unit; auto cutter; control board;cable
