3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe

3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe
3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe 3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe 3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe 3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe 3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe

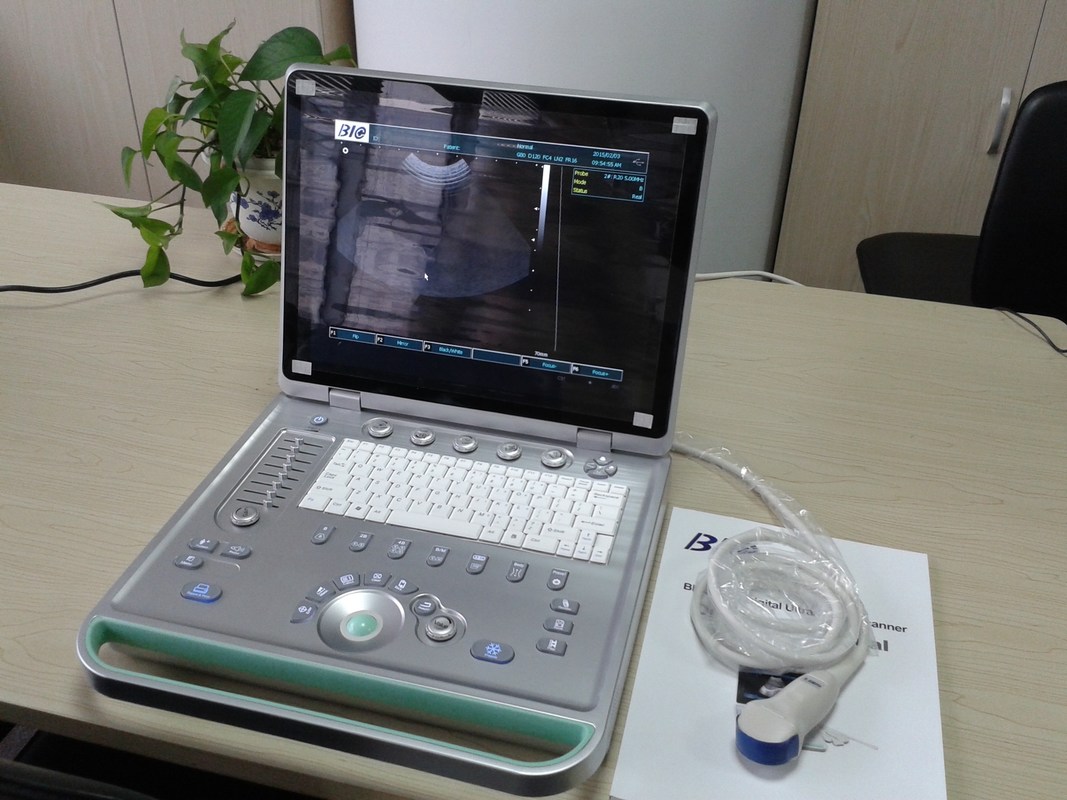

Large Image :  3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe

Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: 3000Q
Payment & Shipping Terms:
Minimum Order Quantity: 30 sets
Packaging Details: Carton (50*25*52cm) 10.5kgs
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month
Detailed Product Description
Color: Silver Display: 15 Inch LED Screen
Scanning Mode: B, 2B, B/M, M, 4B, 9B, ZOOM Warranty: 12 Months
Dimension: 362mm×340mm×60mm Weight: 4.8kgs
Probe Connector: 2 Scanning Depth: Max. 250mm
3D Image Function(function): Can Get Rebuilt 3D Image, Optional
High Light:

portable ultrasound

,

portable ultrasound equipment

3D Digital Laptop Portable Ultrasound Scanner With All Kinds of Probe



Technical Specification

Maximum Scanning Depth max. 250mm
Multi-frequency 5 segment frequencies
Scanning mode B, 2B, B/M, M, 4B, 9B, ZOOM
Real-time Zoom on B mode
Image gray scale 256 level gray scale
Image processing

Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision

Gain 0-100dB
Time gain control(TGC) 8 segment adjustment, B, M adjustment separately



Measurement and calculation

B mode distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram
M mode heart rate, time, distance, slope and stenosis
Gynecology measurement Uterus, cervix, endometrium, L/R ovary
Obstetric gestation age, fetal weight, AFI
Cardiology LV, LV function, LVPW, RVAWT
Urology transition zone volume, bladder volume, RUV, prostate, kidney
Small parts optic, thyroid, jaw and face
Veterinary software(optional) Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD



Others

Supported output apparatus U-Disk, Laser/ink printer, video printer, VGA
Zoom 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Image store by hardisk or USB disk
3D image function(function) can get rebuilt 3D image, Optional
Work time by built-in battery about 5 hours
Monitor 15 inch color LED screen
Probe Connector 2
Dimension 362mm×340mm×60mm
Weight Around 4.8Kg



Ultrasound images

3D Digital Laptop B / W Portable Ultrasound Scanner With Convex Linear Transvaginal Probes



3D Digital Laptop B / W Portable Ultrasound Scanner With Convex Linear Transvaginal Probes



3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe 2



3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe 3



3D Digital Laptop Portable Ultrasound Scanner With Micro - Convex Probe 4
