Product Details:
Payment & Shipping Terms:
|
| High Light: | light pole production line |
||
|---|---|---|---|

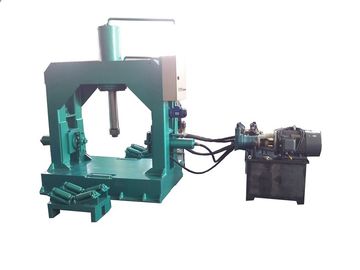

High Mast Assembly And Straightening - Light Pole Machine Specially Design For High Mast
Quick Detail:
| Name | Other names | Brand Name | CMC |
| High Mast Assembly and straightening machine |
High mast close and straightening machine, High mast close seam, Big pole close and straightening, Big light pole close and straightening, |
Feature | Close and straightening two functions for high mast |
| Cutting capacity | Max diameter: 1000mm | Usage Industrial | High mast, transmission tower |
Application:
This machine is suitable for following process of high mast making
Characteristics:
Specifications
| No. | Item | Unit | Value |
| 1 | Model | HJZ-1000 | |
| 2 | Max, diameter of the pole | mm | 1000 |
| 3 | Working force | KN | 1000 |
| 4 | Max stroke | Mm | 650 |
| 5 | Max distance from rod to worktable | Mm | 1150 |
| 6 | Two-side cylinder output force | KN | 300X2 |
| 7 | lateral cylinder stroke | mm | 400 |
| 8 | Movement distance from upper to lower for two-side cylinder | mm | 430 |
| 9 | Max working pressure | MPa | 25 |
| 10 | Height above ground of worktable | mm | 305 |
| 11 | Column inner distance | mm | 1450 |
| 12 | Total motor power | kW | 18.5+5.5 |
| 13 | Weight | kg | 4000 |
| 14 | Overall size | mm | 1300*1900*2400 |
High mast welding process:
We have two ways
1)High efficiency way,use high mast assembly and straightening machine to close the high mast pole
2)Economical way
