Product Details:
Payment & Shipping Terms:
|
Product Name: | Lenticular Filter Vessel | Material Of Construction: | SS304 , 316L , |
---|---|---|---|
Operation Pressure: | 150 Psi , 1.0 Mpa | Relief Valve: | Pressure Relief Valve |
Port Connect: | Threaded BSP , NPT, Flange, Grooved Coupling | Vent Port: | 1/4" |
Drain Port: | 1/2" | Nos Of Cartridge: | Up To 120 Cartridges |
High Light: | cartridge filter housing,stainless steel filter cartridges |

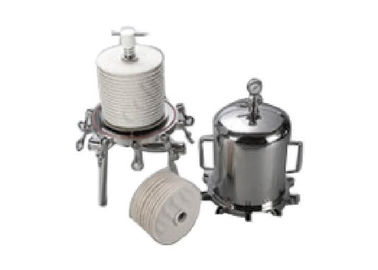

Lenticular filter housing for juice concentration wine enzyme solutions, liquor gelatine, olive 1.0Mpa
Specification
Technical parameter | Data |
Max Operation pressure | 1.0Mpa / 150psi / 10.53bar |
Max operation temperature | 110 ℃ |
Pressure tolerance on welding seam | 0.85 |
Housing materials | SS304, 316L , carbon steel |
Gasket seal materials | Buna , Buna white FDA, Viton, Teflon, EPDM |
Connection port | thread NPT, BSP , flanged , grooved coupling , tri-clamp |
Top closure | Swing bolt |
Suitable filter element type | Lenticular |

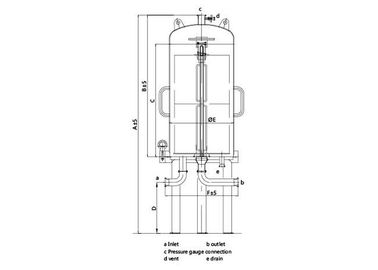

Dimensions:
Model | A | B | C | D | E | F |
DB-08DB1 | 890 | 470 | 350 | 280 | 250 | 300 |
DB-08DB2 | 1160 | 740 | 620 | 280 | 250 | 300 |
DB-08DB3 | 1460 | 1010 | 890 | 280 | 250 | 300 |
DB-08DB4 | 1700 | 1280 | 1160 | 280 | 250 | 300 |
DB-12DB1 | 930 | 510 | 350 | 280 | 350 | 400 |
DB-12DB2 | 1200 | 780 | 620 | 280 | 350 | 400 |
DB-12DB3 | 1470 | 1050 | 890 | 280 | 350 | 400 |
DB-12DB4 | 1740 | 1320 | 1160 | 280 | 350 | 400 |
DB-16DB1 | 950 | 530 | 350 | 280 | 450 | 500 |
DB-16DB2 | 1220 | 800 | 620 | 280 | 450 | 500 |
DB-16DB3 | 1490 | 1070 | 890 | 280 | 450 | 500 |
DB-16DB4 | 1760 | 1340 | 1160 | 280 | 450 | 500 |
Descriptions
Lenticular filters have a long history in food and beverage fields. They arose out of the need to package sheet based depth filter technology in more user-friendly, modular closed systems, especially for small batch production or medium flow rate applications. Our lenticular filter housing can be suitable for international brand's filter disk with lower cost. The surface finish totally reach sanitary grade requirement.
Operation:
Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.
Features:
Low pressure drop and high dirt holding capacity
Permanently piped housing are opened without special tools and without disturbing the piping
Machined cover gasket groove provide positive O-Ring sealine.
End connections for ¾" to 24" pipe
Quick opening tri clovers design, V posts or threaded center posts
Flow rate up to 240 m3/hr or customized
High temperature & high pressure design are available
Positive sealing arrangement to avoid bypassing
Easy to operate & low maintenance
All housings made from SS 316 L, SS 316 & SS304 are mirror polished & electro polished to resist adhesion of dirt and scale
Options
Sanitary fittings and construction
Higher pressure rating
Housings of alloy steel
Steam jackets
Special outlet locations
Optional cartridge sealing methods for 226, NPT, etc
High temperature gasket designs
End connections available
Applications:
Water Treatment |
Oil & Gas |
Automobiles |
Cement |
Refineries |
Textiles |
Petro Chemicals |
Power Plant |
Pharma & Biotech |
Steel Industries |
Dyes & Intermediates |
Paints & Inks |
Sugar Industry |
Electronics |
Mining |
Food & beverage |
Edible Oil |
Aeronautics |
Fertilizers |
Pipe |
Pulp & Paper |
Electoplating |
Aerospace |
Chemicals |
Dairy, Food & Beverage |
Aerospace , Defence & Marine |
Competitive advantage
Microorganism and particle reduction in wine, enzyme solutions, sugar syrups and beer. Final filtration of juice and juice concentration prior to bottling. Prefiltration of juice prior to final membrane filtration. Clarification of wine, enzyme solutions, liquor gelatine, olive oils.
Contact Person: Mr. Li
Tel: 1556784322
Fax: 86-757-8357622
