Product Details:
Payment & Shipping Terms:
|
| Characteristic: | Flexible, Flame Retardant, Eco-friendly, Quick Shrink, Bright Color Stand, Stable Performance | Working Temperature: | -45ºC ~ 125ºC |
|---|---|---|---|
| Shrink Ratio: | 3:1&4:1 | Shrink Temperature: | 70ºC ~ 125ºC |
| Size: | Inner Diameter 2.4-125mm | Color: | Black,blue,red,green...... |
| High Light: | heat shrink tube,heat shrinkable sleeves |
||

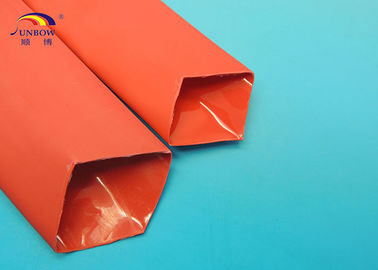

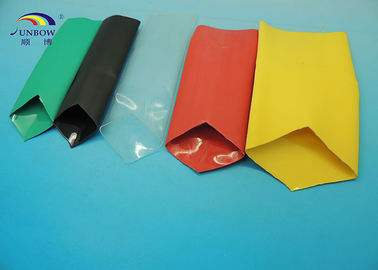

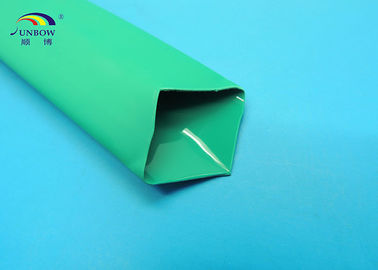

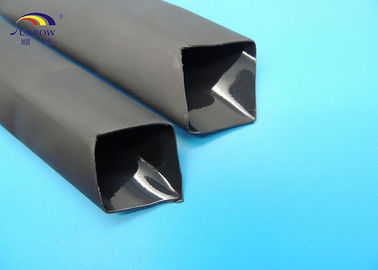

UL / RoHS / REACH certificate Adhesive-lined Heat Shrinkable Tube flame-retardant for electrical wires insulation
Model Number: SB-SBRS-(3X,4X)
Advantage
1. Great production ability as high as 9,000,000 meters/month
2. Competitive price with quality products
3. Whole color UL certificated with inner diameter 2.4-125mm
Characteristics
Working temperature: -45ºC ~ 125ºC
Shrink temperature: 70ºC ~ 125ºC
Shrink ratio: 3:1 & 4:1
Structure
Adhesive-lined heat shrinkable tube adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.
Usage
It is mainly used as waterproof, corrosion resistance, insulation, and mechanical protection. It is widely used in manufacturing of electrical and electronics, communications, automobiles, shipping, aircraft etc.
Standard
Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4
Dimension
1. SBRS-(3X)G
|
Inner Diameter |
As Supplied(mm) ID |
After Recovery(mm) |
Standard Package (m/roll) |
|||
|
(mm) |
(inch) |
ID |
Whole Wall Thickness |
Adhesive Thickness |
||
|
Φ2.4 |
3/32 |
≥2.4 |
≤0.80 |
0.85±0.15 |
0.40±0.10 |
200 |
|
Φ3.2 |
1/8 |
≥3.2 |
≤1.00 |
0.95±0.15 |
0.40±0.10 |
200 |
|
Φ4.8 |
3/16 |
≥4.8 |
≤1.60 |
1.10±0.15 |
0.40±0.10 |
100 |
|
Φ6.4 |
1/4 |
≥6.4 |
≤2.20 |
1.20±0.15 |
0.45±0.10 |
100 |
|
Φ7.9 |
5/16 |
≥7.9 |
≤2.70 |
1.35±0.15 |
0.50±0.10 |
100 |
|
Φ9.5 |
3/8 |
≥9.5 |
≤3.20 |
1.45±0.20 |
0.50±0.15 |
50 |
|
Φ12.7 |
1/2 |
≥12.7 |
≤4.20 |
1.70±0.20 |
0.50±0.15 |
1.22 |
|
Φ15.0 |
5/8 |
≥15.0 |
≤5.20 |
1.80±0.20 |
0.55±0.15 |
1.22 |
|
Φ19.1 |
3/4 |
≥19.1 |
≤6.30 |
2.00±0.20 |
0.55±0.15 |
1.22 |
|
Φ25.4 |
1 |
≥25.4 |
≤8.50 |
2.10±0.25 |
0.55±0.15 |
1.22 |
|
Φ30.0 |
1-1/4 |
≥30.0 |
≤10.20 |
2.20±0.25 |
0.60±0.15 |
1.22 |
|
Φ39.0 |
1-1/2 |
≥39.0 |
≤13.50 |
2.40±0.25 |
0.60±0.15 |
1.22 |
|
Φ50.0 |
2 |
≥50.0 |
≤17.00 |
2.70±0.25 |
0.80±0.15 |
1.22 |
|
Φ64.0 |
2-1/2 |
≥64.0 |
≤21.00 |
3.00±0.30 |
0.80±0.20 |
1.22 |
|
Φ76.0 |
3 |
≥76.0 |
≤25.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
|
Φ90.0 |
3-1/2 |
≥90.0 |
≤30.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
|
Φ100 |
4 |
≥100 |
≤34.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
|
Φ125 |
5 |
≥125 |
≤42.00 |
3.00±0.30 |
1.00±0.15 |
1.22 |
2.SBRS-(4X)G
|
Inner Diameter |
As Supplied(mm) ID |
After recovery(mm) |
Standard Package (m/roll) |
|||
|
(mm) |
(inch) |
Max ID |
Whole Wall Thickness |
Adhesive Thickness |
||
|
Φ4.0 |
2/13 |
≥4.0 |
≤1.0 |
1.0±0.15 |
0.4±0.15 |
200 |
|
Φ6.0 |
1/4 |
≥6.0 |
≤1.5 |
1.1±0.15 |
0.4±0.15 |
100 |
|
Φ8.0 |
5/16 |
≥8.0 |
≤2.0 |
1.2±0.15 |
0.5±0.15 |
1.22 |
|
Φ12.0 |
1/2 |
≥12.0 |
≤3.0 |
1.4±0.15 |
0.5±0.15 |
1.22 |
|
Φ16.0 |
5/8 |
≥16.0 |
≤4.0 |
1.7±0.15 |
0.6±0.15 |
1.22 |
|
Φ20.0 |
15/19 |
≥20.0 |
≤5.0 |
2.0±0.25 |
0.6±0.15 |
1.22 |
|
Φ24.0 |
1 |
≥24.0 |
≤6.0 |
2.1±0.25 |
0.6±0.15 |
1.22 |
|
Φ32.0 |
1 1/4 |
≥32.0 |
≤8.0 |
2.4±0.25 |
0.7±0.15 |
1.22 |
|
Φ52.0 |
2 |
≥52.0 |
≤13.0 |
2.4±0.25 |
0.7±0.15 |
1.22 |
Color:Standard color is black,other color available upon request
Company information
Our main products include various fiberglass sleeving, silicone tube (especially the platinum cured silicone tube), PTFE tube, PVC tube, Heat shrinkable tube and so on.
All our products have obtained theUL and CSA certificates (Cert No: E333178 --UZIQ2, VW-1 & E333177--UZFT2/8,200C, 600V).Also all our products are in conformance with the European RoHS requirements. Furthermore, based on European new requirements, we re-apply and obtained German PFOA and PFOS certificates and European REACH reportshowing that our products do not contain 73 high-risk substances. In Sep.2009, we successfully passed ISO9001:2008international quality management system certification, nowISO14001system is also pushing.
