Product Details:
Payment & Shipping Terms:
|
| Characteristic: | Flexible, Flame Retardant, Eco-friendly, Quick Shrink, Bright Color Stand, Stable Performance | Working Temperature: | -45ºC ~ 125ºC |
|---|---|---|---|
| Shrink Ratio: | 3:1 | Shrink Temperature: | 70ºC ~ 125ºC |
| Size: | Inner Diameter 3.2-39mm | ||
| High Light: | adhesive lined heat shrink tubing,heat shrinkable sleeves |
||

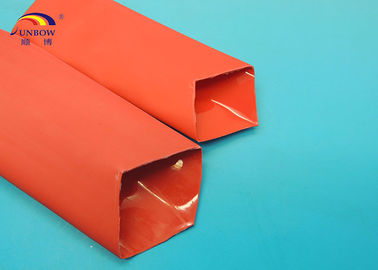

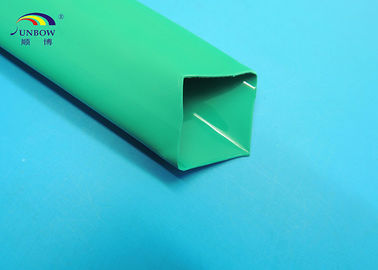

Halogen free polyolefin heat shrinkable tube heavy adhesive-lined with shrink ratio 3:1 for automobiles
1. Great production ability as high as 9,000,000 meters/month
2. Competitive price with quality products
3. Whole color UL certificated with inner diameter 3.2-39mm
Characteristics
Working temperature: -45ºC ~ 125ºC
Shrink temperature: 70ºC ~ 125ºC
Shrink ratio: 3:1
Structure
The soft heavy adhesive-lined heat shrinkable tube adopts flame retardant, cross-linked polyolefin material with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. The inner layer has the excellence of low melt point and waterproof etc. It has passed UL,
RoHS, Reach certifications with 600V and 300V.
Usage
It is widely used in manufacturing of electrical and electronics, communications, automobiles, shipping, aircraft, etc.
Standard
Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4
Dimension
|
Inner Diameter |
As Supplied (mm) |
After Recovery(mm) |
Package |
||||
|
(inch) |
(mm) |
ID |
Max ID |
Total Wall Thickness |
Glue Thickness |
(m/roll) |
(m/pc) |
|
1/8 |
φ3.2 |
≥3.2 |
≤1.00 |
0.90±0.30 |
0.45±0.20 |
200 |
— |
|
3/16 |
φ4.8 |
≥4.8 |
≤1.60 |
1.20±0.30 |
0.55±0.20 |
100 |
— |
|
1/4 |
φ6.4 |
≥6.4 |
≤2.20 |
1.25±0.30 |
0.55±0.20 |
100 |
— |
|
5/16 |
φ7.9 |
≥7.9 |
≤2.70 |
1.35±0.30 |
0.65±0.20 |
100 |
— |
|
3/8 |
φ9.5 |
≥9.5 |
≤3.20 |
1.35±0.30 |
0.65±0.20 |
50 |
1.22 |
|
1/2 |
φ12.7 |
≥12.7 |
≤4.20 |
1.55±0.40 |
0.75±0.20 |
— |
1.22 |
|
5/8 |
φ15.0 |
≥15.0 |
≤5.20 |
1.65±0.40 |
0.75±0.20 |
— |
1.22 |
|
3/4 |
φ19.1 |
≥19.1 |
≤6.30 |
1.90±0.40 |
0.85±0.20 |
— |
1.22 |
|
1 |
φ25.4 |
≥25.4 |
≤8.50 |
2.00±0.40 |
0.90±0.20 |
— |
1.22 |
|
1-1/4 |
φ30.0 |
≥30.0 |
≤10.20 |
2.05±0.40 |
0.90±0.20 |
— |
1.22 |
|
1-1/2 |
φ39.0 |
≥39.0 |
≤13.50 |
2.35±0.40 |
1.05±0.20 |
— |
1.22 |

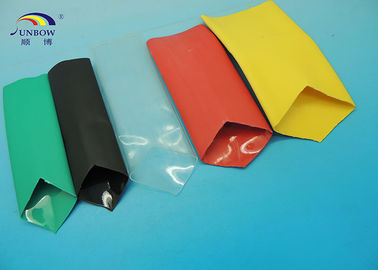

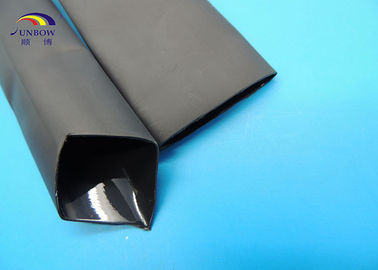

Color:Standard color is black,other colors available upon request
