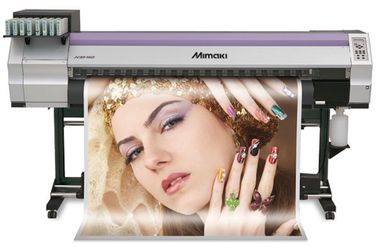

Water based sublimation Digital Fabric Printing Machine with fixer

China Water based sublimation Digital Fabric Printing Machine with fixer supplier
Water based sublimation Digital Fabric Printing Machine with fixer supplier Water based sublimation Digital Fabric Printing Machine with fixer supplier

Large Image :  Water based sublimation Digital Fabric Printing Machine with fixer

Product Details:

Place of Origin: Japan
Brand Name: Mimaki
Model Number: TS34-1800A

Payment & Shipping Terms:

Minimum Order Quantity: One Set
Price: USD 27500 SET (This Price with SR1800 Heater)
Packaging Details: Wood Case
Delivery Time: Within 5 workingdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Application: Printing Flag Print Material: Sublimation Polyester
Printhead: Two PCS Epson DX5 Power: 4160W
Work Way: Roll To Roll . Direct Printing

Water based sublimation Digital Fabric Printing Machine with fixer







Product Feature



1. Adopt Epson DX5 Printhead,Piezo technology with High precision,

2. With Dual CMYK color

3.1440 DPI nozzle

4. Max fabric width 1.9m

5. Use RasterLinkPro 5 rip software

6. Perfect work with SR1800 sublimation heater

7. work way roll to roll.

8. Direct Printing

9. It is widely used to flag  banner post fabric printing.



Product Techincal Data



Mode MSR1800(Include Mimaki TS34-1800A Printer and SR1800 Heater)
Print head Piezo technology,Epson DX7 printer head
Ink Sublimation ink
Color mode Dual KCMY
Nozzles 1440nozzlesx2head
Print head higher 2/3mm,3/4mm,4/5mm(Optional)
Max materials width 1900mm
Max printing width 1800mm
Printing resolution and speed Resolution(dpi)   speed
360x360(1pass)   91m2/h
540x720(4pass)   32m2/h
540x1080(6pass)   22.2m2/h
720x1440(8pass)   13.5m2/h
Media Size 210mm~1910mm
Thickness 1.0mm
Roll inside diameter 2 Inch/3 Inch
Roll owter diameter 180mm
Maximum weight for roll material 25Kg
Rip Software RasterLinkPro 5
Interface USB2.0
Printer power AC100-120V/AC220-240V(Adaptive).50/60Hz±1Hz
Sublimation machine AC220-240V.16A.50/60Hz±1Hz
Power consumtion Direct dye sublimation heater 3800W
Printer   360W
Environment Temperature:20-35°C,Humidity:35-65%
Weight 600KG







Product Advantage



1. Direct printing image into fabric .

2.Use dye sublimation ink . no smell, no pollute.

Water based sublimation Digital Fabric Printing Machine with fixer

Water based sublimation Digital Fabric Printing Machine with fixer



SR1800 Technical Data



Power

3.8KW

Working Width

1800MM

Blackbody Tube Working Model

Far Infrared

Heat Tuble Dimension

2220MM

Working Temperture

100 to 250 °C

Tension

0 to 1.2Kg

Working Voltage
Take Up working Method
Take Up media diameter(roll to roll)

220~240V 50HZ
Directly out or Roll to Roll.
300mm

Weight

330Kg

Certification

CE Certificated

Package

High intensity standard carton package Non Fumigation

Available Printer

Mimaki, Roland , Mutoh and any Piazo Printer



SR 1800 Heater Picture

Water based sublimation Digital Fabric Printing Machine with fixer

Water based sublimation Digital Fabric Printing Machine with fixer



Application Field:



Textile,flag,poster,banner, tablecloth,wall pictures,interior decoration, indoor and outdoor printing etc



Product Service



This machine has one year warranty . We are support oversea service.and all of life techincal support.
