KT2300 Heat Shrink Tubing (M23053/2,CL2) 2:1 PVC Low -Cost

China KT2300    Heat Shrink Tubing (M23053/2,CL2) 2:1 PVC Low -Cost  supplier
KT2300    Heat Shrink Tubing (M23053/2,CL2) 2:1 PVC Low -Cost  supplier KT2300    Heat Shrink Tubing (M23053/2,CL2) 2:1 PVC Low -Cost  supplier KT2300    Heat Shrink Tubing (M23053/2,CL2) 2:1 PVC Low -Cost  supplier

Large Image :  KT2300 Heat Shrink Tubing (M23053/2,CL2) 2:1 PVC Low -Cost

Product Details:

Place of Origin: China
Brand Name: KINGTONE OEM
Certification: CE,RoHS,VDE,UL,CUL,LPCB
Model Number: Heat Shrink Tubing (M23053/2,CL2) 2:1 PVC

Payment & Shipping Terms:

Minimum Order Quantity: 3OKM
Packaging Details: 500FT/1000FT Plastic/Wooden Spool
Delivery Time: Normally 15 days
Payment Terms: T/T,L/C
Supply Ability: 50*20’GP/Month
Contact Now
Detailed Product Description



Quick Detail:



2:1 PVC Heat Shrink Tubing

(M23053/2,CL2)

Low -Cost

Economical

Excellent sunlight and ozone resistance

Ecellent oil,moisture,and fungus resistance

Semi-gloss finish ideal for cosmetic appilications

Outstanding flame and chemical resistance

Easily hot stamped for wire ID

Spooled lengths reduce waste

Competitive price with good and stable quality

Quickly and professionally answer for the inquire





Description:



2:1 PVC Heat Shrink Tubing (M23053/2) is a low-cost, economical heat shrink tubing for military, commercial, and industrial cable assemblies. It offers great electrical insulation and has a low shrink temperature. It also resists many chemicals, oils, sunlight, moisture, and fungus. The tubing is very flexible.

Because of good managing methods, KINGTONE’S price of Solar Cable  is not high although our quality is really high.





Applications:



Electrical & general purpose bundling

Uses with PVC Cable

Use with heat sensitive substrates

Wire harnesses and cable assemblies

Applications with flame retardant requirements

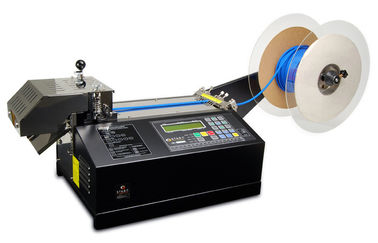

Automated cutting machines (spools)





M23053/2 Characteristics:



Shrinkage Ratio: 50% (2:1) @ 105ºC

Longitudinal Shrinkage: +/-10% (min.)

Operating Temp Range: -35ºC to +105ºC

Dielectric Strength: 1,083 V/mil

UL Rating: 600V @ 105ºC

Volume Resistivity: 21.5 x 1012 ohm-cm

Specific Gravity: 1.33

Tensile Strength: 2,500 psi (176 kg/cm2)

Ultimate Elongation Non-Irradiated: 300% (min.)

Colors: Black, clear, red and yellow



M23053/2 Chemical Properties:

Corrosive Effect: Meets requirements of MIL-I-631

Fungus Resistance: No growth (MIL-I-7444)

Water Absorption: 0 to 1% max 24 hours @ 25ºC



M23053/2 Features:

Economical

Excellent sunlight and ozone resistance

Excellent oil, moisture, and fungus resistance

Semi-gloss finish ideal for cosmetic applications

Outstanding flame and chemical resistance

Easily hot stamped for wire ID

Spooled lengths reduce waste



Other Benefits:

Low Shrink Temperature (100ºC)

30% Stronger than Standard Polyolefin

Low Water Absorption and UV Resistant

Multiple Package Availability





Customization Services for 2:1 PVC Heat Shrink Tubing include:



Size (in)

Expanded I.D. (in)

Recovered I.D. (in)

Nom. Rec. Wall Thick. (in)

Mil-Spec #

3/64

0.046

0.023

0.02

M23053/2-201

1/16

0.063

0.031

0.02

M23053/2-202

3/32

0.093

0.046

0.02

M23053/2-203

1/8

0.125

0.062

0.02

M23053/2-204

3/16

0.187

0.093

0.02

M23053/2-205

1/4

0.25

0.125

0.025

M23053/2-206

5/14

0.313

0.187

0.025



3/8

0.375

0.187

0.025

M23053/2-207

1/2

0.5

0.25

0.025

M23053/2-208

5/8

0.625

0.313

0.025



3/4

0.75

0.375

0.03

M23053/2-209

1

1

0.5

0.035

M23053/2-210

1 1/4

1.25

0.625

0.041



1 1/2

1.5

0.75

0.043

M23053/2-211

2

2

1

0.048

M23053/2-212

3

3

1.5

0.068



4

4

2

0.073







Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

A,Incoming material inspected by QC.

B,Manufacturing Process Control

  A: Manufacturing procedure

  B: Workers trained daily/weekly/monthly

  C: Work instructions manual at each work station

  D:5S system implemented

  E: Machine maintenance procedure

C, Quality Control and Final Inspection

  The QC staff will check the material, process product and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE

3, We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
