Portable Colorimeter Paper Testing Instruments Digital Small Volume

China Portable Colorimeter Paper Testing Instruments Digital Small Volume supplier
Portable Colorimeter Paper Testing Instruments Digital Small Volume supplier Portable Colorimeter Paper Testing Instruments Digital Small Volume supplier Portable Colorimeter Paper Testing Instruments Digital Small Volume supplier

Large Image :  Portable Colorimeter Paper Testing Instruments Digital Small Volume

Product Details:

Place of Origin: China
Brand Name: LIYI
Certification: ISO
Model Number: WR-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard Export Carton Case
Delivery Time: Within 15 days after receiving the payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 500 piece/month
Contact Now
Detailed Product Description
Color Space: CIELAB Color Difference Formula: E*ab
Measurement Caliber: φ8mm Illumination Condition: CIE Recommendation:8/d
Light Source: D65 Sensor: Photodiode Array

Portable Colorimeter Paper Testing Instruments Digital Small Volume



Product Introduction:
Quickly detail :

Color Space

  CIELAB

Color Difference Formula

  E*ab

Measurement Caliber

  φ8mm

Illumination Condition

  CIE Recommendation:8/d

Light Source

  D65

Sensor

  Photodiode array



Application:
WR-10 is an economical colorimeter. It can be used in textile, printing and dyeing, garment, footwear, leather, plastics, pigments, paints, inks, printing, hardware, toys and the other industries associated with the color.



Characterisics:
Cost-effective: while maintaining low prices, it has an excellent performance, high repeatability and high accuracy.
The most convenient colorimeter: black and white version boot automatically corrected (National Patent)
Efficient, Environmental Energy management: Removable lithium battery, the capacity reach to 3000mAH.It can measure 5000 times after charging the battery.
The real color screen display: LAB-Stereo Space Figure, the test results at a glance! Observing more comfortable!
Exquisite appearance: the machine small and exquisite appearance, comfortable hand grip, moderate weight. You don’t feel tired after measuring for a long time.
Simple operation interface: The page type, graphical operation interface design, easy to use
Multipurpose measurement: with a powder test kit (optional), to measure powder color easily.



Specifications:

Model

  WR-10

Color Space

  CIELAB

Color Difference Formula

  E*ab

Measurement Caliber

  φ8mm

Illumination Condition

  CIE Recommendation:8/d

Light Source

  D65

Sensor

  Photodiode array

Observer

CIE 10° Standard observer

Measurement Range

  L: 0 to 100

Repeated Accuracy

  E<0.08

Table Difference

  E<0.2

Measurement Interval

  1 Sec.

Storage Capacity

  Type sample data : 100 groups with testing sample data: 100 groups

Lifetime of Bulb

  5 years more than 1.6 million measurements

Display Screen

  TFT true color 2.8inch@(16:9)

Language

  English/Simplified Chinese

Interface of External

  USB2.0 (USB-B) RS-232 (115200bps)

Working Temperature Range

  0-40(32-104)

Storage Temperature Range

  -20-50℃(-4-122℉)

Humidity Range

  Relative humidity less than 85%,without condensation

Weight

  700g

Size

  199*68*90mm

Package Size

  400*240*340mm

Battery Charging Time

  8 hrs

Battery

  Li-ion battery, 5000 times Measurement

Standard Accessories

  AC adapter/ 3000mAH Li-ion battery

Optional Accessories

  Flour measuring device/Micro printer





Pictures:

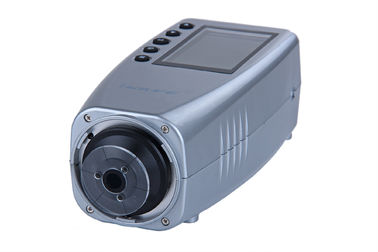

Portable Colorimeter Paper Testing Instruments Digital Small Volume

Portable Colorimeter Paper Testing Instruments Digital Small Volume
