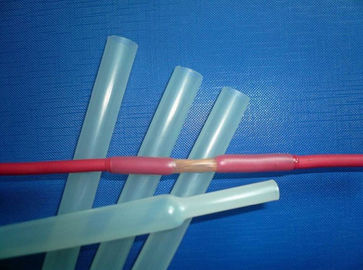

Red PTFE Teflon Tube , Teflon PTFE Shrink Tubing For Protecting 2.10 - 2.30 g/cm³

Red PTFE Teflon Tube , Teflon PTFE Shrink Tubing For Protecting 2.10 - 2.30 g/cm³
Red PTFE Teflon Tube , Teflon PTFE Shrink Tubing For Protecting 2.10 - 2.30 g/cm³

Large Image :  Red PTFE Teflon Tube , Teflon PTFE Shrink Tubing For Protecting 2.10 - 2.30 g/cm³

Product Details:
Place of Origin: China
Brand Name: B&C
Certification: SGS,UL, CE,IOS9001,ISO14001
Model Number: PTFE tube-007
Size: Diameters1mm-20mm
Thickness: Very thin wall thickness
Payment & Shipping Terms:
Minimum Order Quantity: 3KGS
Price: Negotiable
Packaging Details: Ply-Wooden Cases
Delivery Time: 10-20days
Payment Terms: T/T, LC
Supply Ability: 110Tons/month
Detailed Product Description
Wall Thickness: 0.23mm Apparent Density: 2.10 - 2.30 G/cm³
Applications: Wire|Protecting Color: Natural White|Red
Product Name: PTFE Tube Feature: Long Durability
Temp: -270°C - 260°C
High Light:

Teflon Tubing

,

PTFE Teflon



Protecting PTFE Tube , PTFE Heat Shrink Tubing





Quick Detail:



1. Continuous operating temperature -454°F to 500°F (-270°C to 260°C)

2. Outstanding resistance to almost any chemical known

3. Very low coefficient of friction

4. Good dielectric strength

5. Limiting Oxygen Index greater than 95

6. ETO and autoclave sterilizable

7. Flat and tidy surface, no defects, crevices and separations

8. Low minimum order quantity

9. Good services





Description:



PTFE  Shrink Tubing is available in 2:1 and 4:1 shrink ratios, and is widely used in military

applications because of its high continuous use temperature (250°C), and outstanding chemical

resistance.



PTFE  Shrink Tubing is the most difficult of the three fluoropolymer materials to shrink due to

its extremely high shrinking temperature (325-340°C). You can use a heat gun or welding torch to

shrink PTFE, but these methods have a tendency to cause the material to overheat in small areas,

while under-heating other areas, causing uneven shrinking and potential burning of the material.

The most reliable method for shrinking PTFE  is the use of a controlled temperature oven;

however this is impractical with large harnesses or temperature sensitive components.



PTFE heat-shrink sleeves are made from pure virgin PTFE with no fillers or additives and therefore

offer all the exceptional properties of PTFE. The major characteristic is a upper continuous working

temperature of 260° C. This exceeds that of any other heat-shrink polymer. In addition it is completely

resistant to virtually all chemicals, and UV radiation. It is available in 4:1 and 2:1 shrink ratios, and the

shrinking temperature is 327° C.





Applications:



PTFE sleeves are mainly used in various electric cable, electric wire, protecting cover,  inner liner

pipes for corrosive fluids and gas, heat exchange machine tube and fluids meter tube.







Specifications:



Dimensions, Shrink Ratio 2:1

As supplied ID (mm)

After recovered ID(mm)

Wall thickness (mm)

0.86

0.38

0.23

0.97

0.46

0.23

1.17

0.56

0.23

1.27

0.64

0.25

1.4

0.8

0.25

1.5

1

0.25

1.6

1.1

0.3

1.9

1.2

0.3

2.3

1.5

0.3

3

1.8

0.3

3.8

2.2

0.3

4.8

2.8

0.3

6.1

3.6

0.38

7.6

4.4

0.38

9.4

5.5

0.38

10.9

6.9

0.38



Dimensions, shrink ratio 4:1

As supplied ID (mm)

After recoved ID (mm)

Wall thickness (mm)

2

0.64

0.22

3.2

0.94

0.25

4.8

1.27

0.3

6.4

1.6

0.3

8

2

0.3

9.5

2.4

0.3

11.1

2.8

0.3

12.5

3.6

0.38

14.3

3.9

0.38

15.8

4.5

0.38

17.5

5

0.38

19

5.7

0.38

22.2

6.2

0.38

25.4

7

0.38

31.7

8.8

0.38

38.1

10.2

0.38







Remarks:



PTFE  heat shrink tubings are available in other sizes and thickness according to customer's

specific requirements.





Competitive Advantage:



1.Excellent Chemical property

2.Virgin and recycled materials available

3.Any sizes available

4.Fast Usually
