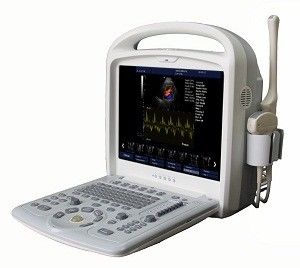

15inch Full-digital Color Doppler Ultrasound System Portable With 3D / 4D Software
Specifications
Ulatrasound scanner
1.Portable
2.Display Mode:B, B+B, B+M, M, 4B, 9B
3.Color doppler
New general handheld/portable color doppler
ultrasound scanner with 3D&4D software
Main introduction of doppler ultrasound scanner:
|
Cutting-edge Imaging Techniques
|
1. Digital Beam Forming (DBF) 2. Real-time Dynamic Aperture (RDA) 3. Dynamic Receiving Focus (DRF) 4. Tissue Harmonic Imaging (THI) |
Professional Clinical Diagnostic Solutions
|
Applications |
General, OB/GYN, Cardiology, Urology, Small organ, etc
|
|
Imaging mode |
B, 2B, 4B, M, B/M |
|
One-click optimization |
Preset various calculation formula, diagnostic parameters, case library, etc
|
|
File management |
Image save, video save, examination report auto-generation
|
|
Peripheral ports |
USB2.0/ Video/ /S-video/RS-232/ DICOM3.0 |
Ergonomic Designed Keyboard, Radium Carved Soft Keys
Multi-frequency, High-density, Broadband Probes
•Volume
• Convex
• Linear
• Trans-vaginal
•Trans-rectal
• Micro-convex
Standard Configuration
• Color ultrasound scanner main unit
• 3.5MHz/R80 volume probe
• 4D imaging software package
• 250ml coupling gel
• AC adapter
• Built-in rechargeable lithium battery
• Protection bag
• Grounding cable
• Fuse (2)
• Operation manual
Options about color ultrasound scanner
• 3.5MHz/R60 convex-array probe
• 3.5MHz/R20 micro-convex-array probe
• 7.5MHz/L40 linear-array probe
• 6.5MHz/R13 transvaginal probe
• DICOM3.0
• Biopsy guide for convex probe
• Video printer
• Laser printer
• Ergonomic mobile trolley
• Air captain suitcase Drag and pack backbag
Specifications:
|
MODEL |
MSLCU18 |
|
Monitor |
15 inch LED |
|
Display mode |
B, B+B, B+M, M, 4B, 9B |
|
Image gray scale |
256 level |
|
Cine loop |
Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M |
|
Image storage |
>50,000 frames |
|
Scan angle |
60-160 degrees, depending on probe |
|
Scan depth |
20mm~240mm |
|
Dynamic range |
≥100dB, 4-level adjustable |
|
Image flip |
Up/down, left/right, black/ white, 90/180/270° |
|
Zoom |
Continuously, real-time dynamic PIP |
|
Focus position |
Adjustable |
|
Focal space |
Adjustable |
|
Measurement |
Distance, circumference, area, volume, angle, heart rate, time, velocity, residual urine, etc. |
|
Software packages |
General, OB, GYN, cardiology, urinary, small organ |
|
Notation |
Date, time, name, sex, age, doctor, hospital name, full screen notation |
|
Body mark |
43 types |
|
Peripheral port |
Video, S-video, USB2.0, DICOM3.0, VGA |
|
Battery volume |
8,000mAh |
|
Power consumption (MAX) |
75VA |
|
Dimension |
35.5*36.6*7.5 CM |
|
Net Weight |
5kgs |
