Art craft CO2 laser engraver cutting engraving machine with 50w laser tube

Art craft  CO2 laser engraver cutting engraving machine with 50w laser tube
Art craft  CO2 laser engraver cutting engraving machine with 50w laser tube Art craft  CO2 laser engraver cutting engraving machine with 50w laser tube

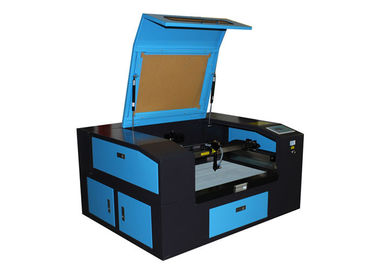

Large Image :  Art craft CO2 laser engraver cutting engraving machine with 50w laser tube

Product Details:
Place of Origin: China
Brand Name: Hunst LASER
Certification: CE, FDA
Model Number: HSM-6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Exported wooden case according to the international rules.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 sets per month
Detailed Product Description
Laser Type: CO2 Applicable Material: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Bamboo
Cutting Thickness: 15mm Acrylic (80W) Cutting Area: 600 X 400mm
Cutting Speed: 0-800mm/S CNC Or Not: Yes
Cooling Mode: Water Cooling Control Software: DSP
Graphic Format Supported: AI, PLT, DXF, BMP, DST, DXP Laser Source: CO2 Glass Laser Tube
Laser Wavelength: 10640nm Running System: Best Step Motor
Optical Lens: II-VI Lens From Singpore Guide Rail: Linear Guide Rail From Taiwan
Power Consumption: 1.5KW Color For Machine Frame: Grey, Blue, White Are Available
OEM Service: Available After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

CNC laser engraving machine

,

laser die cutting machine



Desktop cheap laser engraver with 50w laser tube and red dot pointer for hobby



Brief Introduction:



Without any exaggeration, the HSM series mini laser engraver is a state-of-the-art machine. This high precision laser engraving machine boasts desktop structure, small and delicate appearance, and nearly the same performance as general laser cutters.

The mini laser engraver is specially designed for our clients, who need a small and easy-to-carry desktop laser engraver after we actively collect their various constructive feedbacks. This portable laser engraving machine is small enough to move from door to door and ideal for saving space just like a laser printer in an office.







Detailed Pictures:

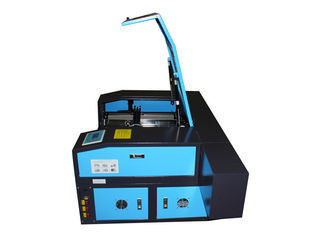

Art craft  CO2 laser engraver cutting engraving machine with 50w laser tube 0



Applications:



The mini laser engraver with a small body and high engraving precision is suitable for engraving individualized products, artworks and crafts like stamps, business cards, pictures, gifts, greeting cards and so on, so this multifunction laser engraving machine is often called art craft engraving machine.



Art craft  CO2 laser engraver cutting engraving machine with 50w laser tube 1Art craft  CO2 laser engraver cutting engraving machine with 50w laser tube 2





Technical Parameters of Mini Laser Engraver



Model

HSM-3040

HSM-4060

Effective working travel

300*400mm

600*400mm

Laser power

45W

45W

Laser type

CO2 glass tube

CO2 glass tube

Operating voltage

AC220V( or 110V )±10% 50Hz /60Hz

AC220V( or 110V )±10% 50Hz /60Hz

Maximum cutting speed

1500mm/s

1500mm/s

Repeat position accuracy

0.01mm

0.01mm

Minimum character

English letter: 1*1mm

English letter: 1*1mm

Operating temperature range

5-45℃

5-45℃

Resolution

≤4500dpi

≤4500dpi

Control mode

DSP

DSP

Transfer mode

By USB port or U flash disk

By USB port or U flash disk

Laser tube service life

3500 hours

3500 hours

Software environment

Windows 2000/ XP/Vista

Windows 2000/ XP/Vista

Cooling type

Water cooling system

Water cooling system

Acceptable graphic format

BMP, PLT, DST, AI, DXF, GIF, JPG, PCX, TGA, TIFF, etc.

BMP, PLT, DST, AI,DXF, GIF, JPG, PCX, TGA, TIFF, etc.

Acceptable software

Self software/ CorelDraw/ AutoCAD

Self software/ CorelDraw/ AutoCAD

Cutting depth

0-5mm(depending on different materials)

0-5mm(depending on different materials)

Slope engraving

Yes, slope can be designed discretionarily

Yes, slope can be designed discretionarily

Packing type

Wooden case

Wooden case

Packing dimension





Net weight

100kgs

140kgs

Gross weight

130kgs

180kgs







Standard Accessories


A laser tube
A set of mirrors (a laser focus lens and three laser mirrors installed)
A water chiller for laser (water-cooling system)
An air pump and air tube for blowing
A laser control unit
An air-sucking system
A USB cable
A software CD
A user manual and a demo CD
