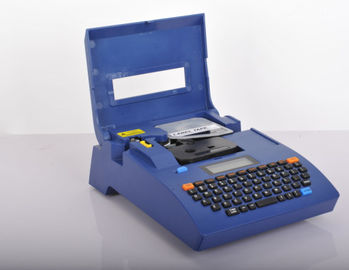

Automatic Cable Marking Printer

Automatic Cable Marking Printer

Large Image :  Automatic Cable Marking Printer

Product Details:
Detailed Product Description
High Light:

wire tag printer

,

cable marking machine



Automatic half - cutting Cable Marking Printer , Thermal transfer printing Cable ID Printer





Quick Detail :



Brand Name : L-mark

Model Number : LK-320

Color : Blue

Weight : About 1.5 KGS

Feature : Connection with PC

Guarantee period : 2 years(3 months for Printer head)

Dimensions : 265(L)X198(W)X90(H)





Specifications for cable ID printer :



Model

LK-320

Mode of printing

Thermal transfer printing

Resolution

300dpi

Printing character height

1.3mm-8mm

Max number of input pages

198

Sleeve tube size printable

2.5mm-6mm (inside diameter)

Label size printable

6mm/9mm/12mm

Printing speed

11.5mm/sec(with half-cut)

Display

LCD,white color background,displaying up to 3 lines

Characters printable

Chinese,English,Number,Symbol

Entry method

Standard 64-key

Memory

About 50,000 characters

Material cutting method

Automatic half-cutting

Power supply

DC 12V 2A





Product features:



1, Fashionable and top-grade white background light LCD display, with status information of more than 10 functions displayed;



2, One-key operation: all functions can be performed by pressing only one key, thus offering a convenient and quick operation;



3, International standard 85-key computer keyboard;



4, Beautiful L-MARK type, offering a clearer and more lasting print out;



5, With a unique “Correct” key, enabling you to inspect and correct any minute printing length changes caused by material difference;



6, Ultra-large in-built file memory capacity, able to store more than 100 files, ready to be recalled at any time;





List of consumables provided :



Commodity

Description

Product Code

Package

Labels

Label cassette tape(White 6mm)

LM406WL

5pcs(8m×5)/box

Label cassette tape(White 9mm)

LM409WL

5pcs(8m×5)/box

Label cassette tape(White 12mm)

LM412WL

5pcs(8m×5)/box

Label cassette tape(Yellow 6mm)

LM406YL

5pcs(8m×5)/box

Label cassette tape(Yellow 9mm)

LM409YL

5pcs(8m×5)/box

Label cassette tape(Yellow 12mm)

LM412YL

5pcs(8m×5)/box

Label cassette tape(Silver 6mm)

LM406SL

5pcs(8m×5)/box

Label cassette tape(Silver 9mm)

LM409SL

5pcs(8m×5)/box

Label cassette tape(Silver 12mm)

LM412SL

5pcs(8m×5)/box

Ink rinbbons

Ribbon cassette (black)

LM33B

5pcs(80m×5)/box

Ribbon cassette (White)

LM33W

5pcs(80m×5)/box

Ribbon cassette (Red)

LM33R

5pcs(80m×5)/box

Shrink tubes

2.1 heat shrink tube cassette(White  3.0mm)

LM-SS30W

5pcs(2.5m×5) /box

2.1 heat shrink tube cassette(Yellow 3.0mm)

LM-SS30Y

5pcs(2.5m×5) /box

2.1 heat shrink tube cassette(White  5.2mm)

LM-SS52W

5pcs(2m×5) /box

2.1 heat shrink tube cassette(Yellow 5.2mm)

LM-SS52Y

5pcs(2m×5) /box

2.1 heat shrink tube cassette(White  6.8mm)

LM-SS68W

5pcs(2m×5) /box

2.1 heat shrink tube cassette(Yellow 6.8mm)

LM-SS68Y

5pcs(2m×5) /box

Cutter

Cutter(cutter holder and cutting blade)

LM-02-10

2pcs/box



Automatic Cable Marking Printer  0

Automatic Cable Marking Printer  1Automatic Cable Marking Printer  2



Applications :



Cable ID Printer are widely used in electric installation, communication, aerospace,Machines & Equipments manufacturer, Oil and gas sector, metallurgy, petrochemical, transportation, commercial, warehouse, logistics.





Communication with customers:



1) Q: Can we use mobile power supply connect to cable ID printer?

A :yes,the power supply is outputs 12V DC electricity.



2) Q: How’s the package of cable marking machine?

A:Normally, the machines into a handbag, the handbag into a box,2 boxes into a standard carton(510mm*430mm*430mm).



3) Q: what’s product is needed after buying printer?

A: LM33B ribbon cassette.



4) Q: How’s warranty period of your products?

A: Our company provides 2 years charge-free warranty service (3 months for print head)from the date of purchase.



5) Q: what kind of request for the printing material?

A: For sleeve tube size is from Diameter 3.0mm to 6.8mm .
